Caution / Notice / Hint

NOTE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [10/2022 - ]

COMPONENTS (INSTALLATION)

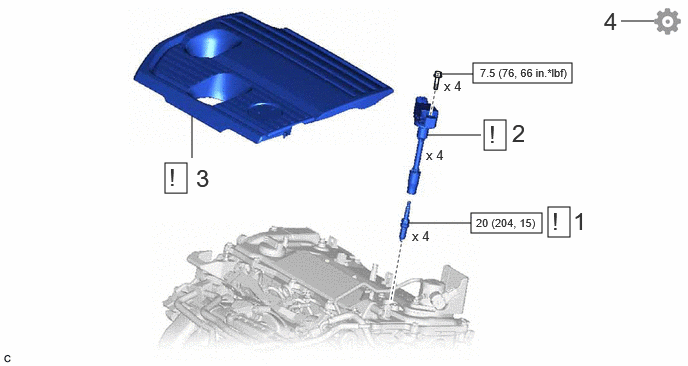

Fig 1: Ignition Coil And Spark Plug Installation Components With Torque Specifications [08/2023 - ]

GTY1076473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	SPARK PLUG	19100P	See step 1	-	-
2	IGNITION COIL ASSEMBLY	19500	See step 2	-	-
3	NO. 1 ENGINE COVER SUB-ASSEMBLY	12601B	See step 3	-	-
4	PERFORM INITIALIZATION	-	-	-	See step 4

N.m (kgf/cm, ft.lbf): Specified torque

-

-
