Removal [11/2021 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ]
  2. REMOVE RADIATOR UPPER AIR GUIDE PLATE

    Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  4

  4. DISCONNECT VACUUM HOSE

    See step  5

  5. DISCONNECT NO. 2 VENTILATION HOSE

    See step  6

  6. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    See step  7

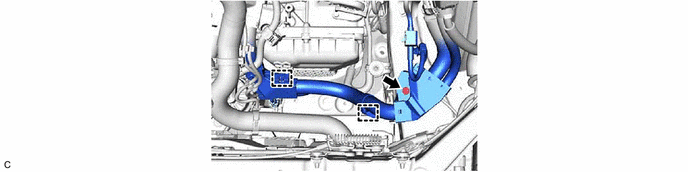

  7. DISCONNECT ENGINE WIRE
    1. GTY1076662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

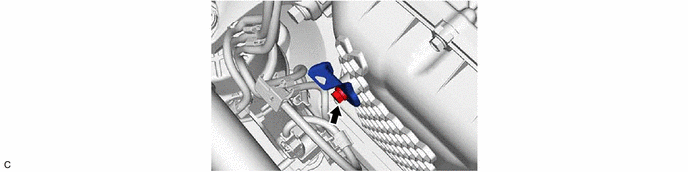

  8. REMOVE WIRE HARNESS CLAMP BRACKET
    1. GTY1077477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

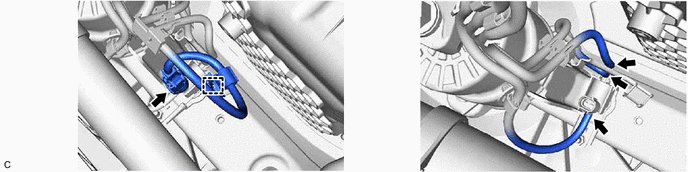

  9. DISCONNECT VACUUM HOSE
    1. GTY1076657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

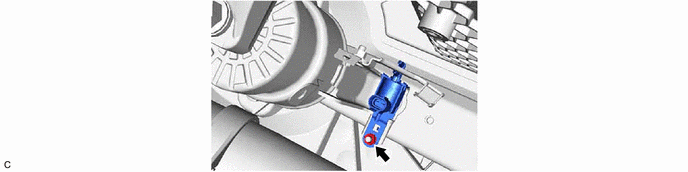

  10. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)
    1. GTY1077476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
