Reassembly [11/2017 - 01/2023]: Procedure

  1. INSTALL NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET
    1. Temporarily install the No. 1 millimeter wave radar sensor bracket with the 2 screws.

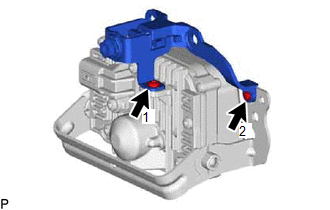

      Fig 1: No. 1 Millimeter Wave Radar Sensor Bracket Tightening Sequence
      GTY547563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 2 screws to install the No. 1 millimeter wave radar sensor bracket.

      HINT:

      Tighten the screws in the order shown in the illustration.
