Power Window Control System - Diagnostics - Introduction
>>
Power Window Control System
>>

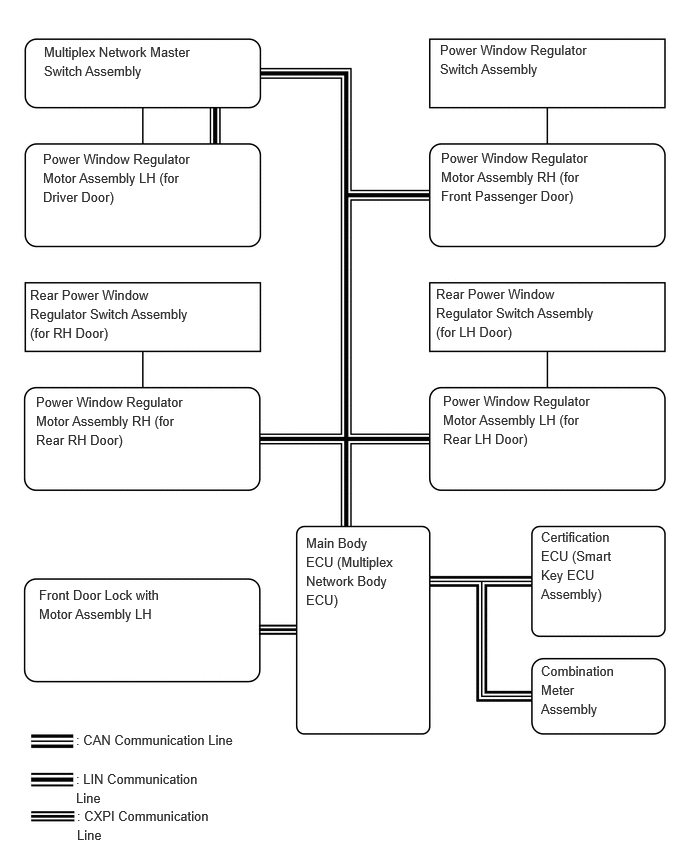

System Diagram [11/2021 - ]
>>
System Diagram [11/2021 - ]
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram [11/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
