Power Window Control System (Diagnostic Codes & Symptom Tests)
>>
Power Window Control System
>>
Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH [10/2018 - ]
>>
Wiring Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

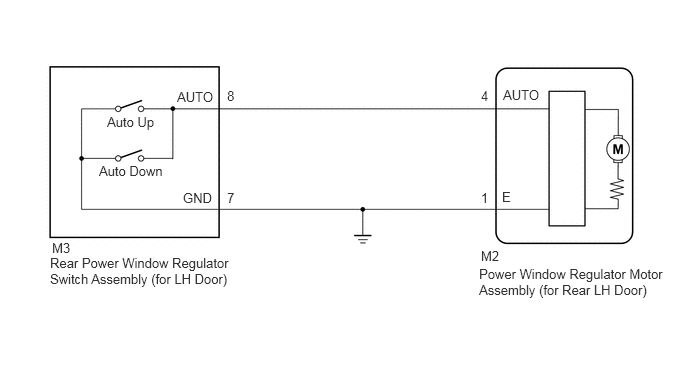

Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH [10/2018 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
