Components [10/2015 - ]

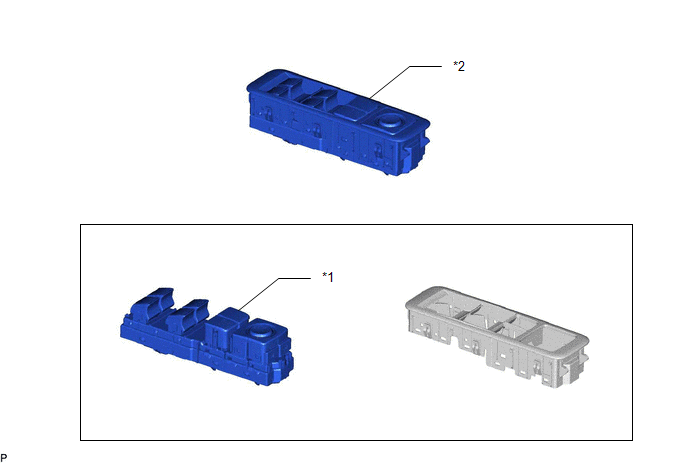

Fig 1: Power Window Master Switch Replacement Components
GTY641583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY *2 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
