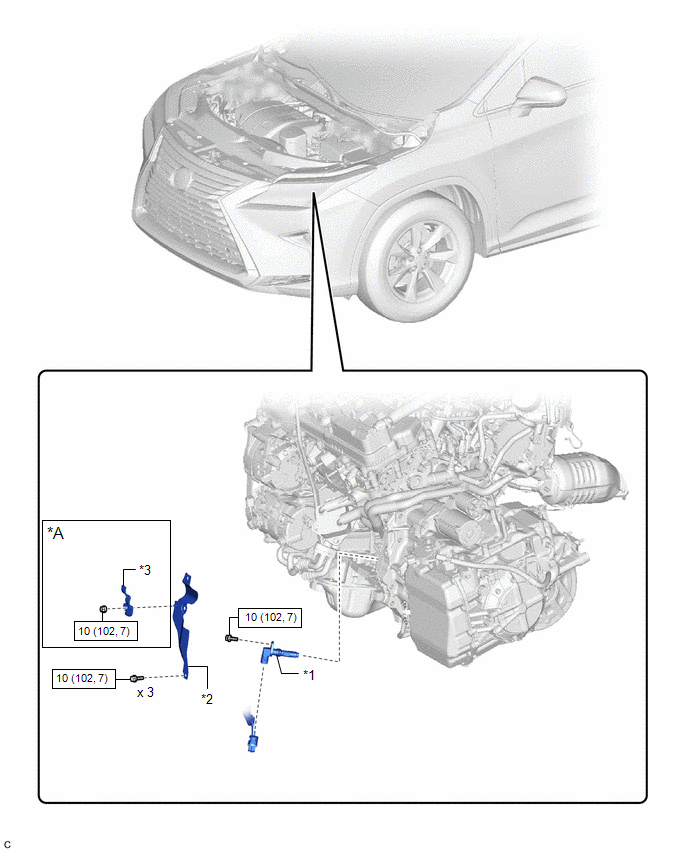

Components [09/2015 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
w/ Oil Cooler |
- |
- |
| *1 |
CRANKSHAFT POSITION SENSOR |
*2 |
CRANKSHAFT POSITION SENSOR PROTECTOR |
| *3 |
HOSE CLAMP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
