Components [09/2015 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

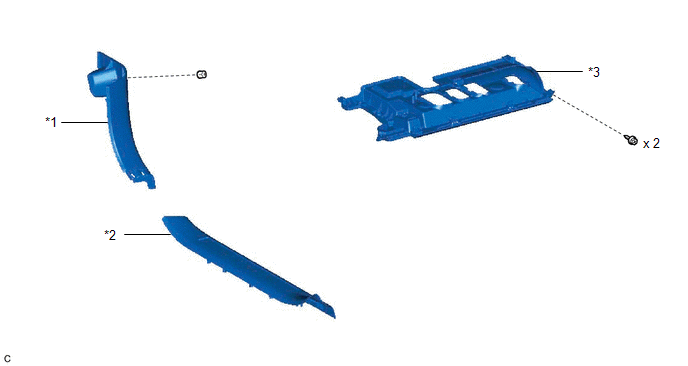

| *1 |
COWL SIDE TRIM BOARD |
*2 |
FRONT DOOR SCUFF PLATE LH |
| *3 |
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
- |
|
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

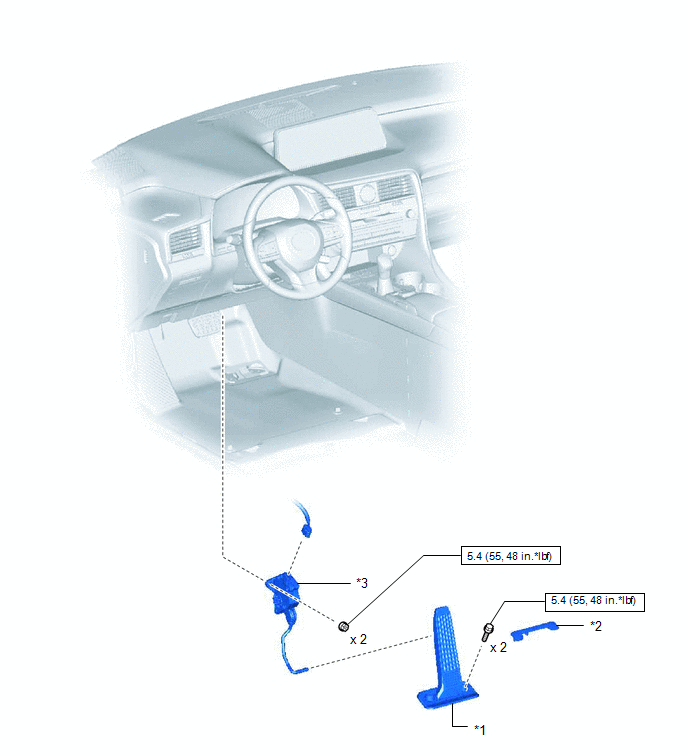

| *1 |
ACCELERATOR PEDAL |
*2 |
ACCELERATOR PEDAL PAD |
| *3 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
