Components [09/2015 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

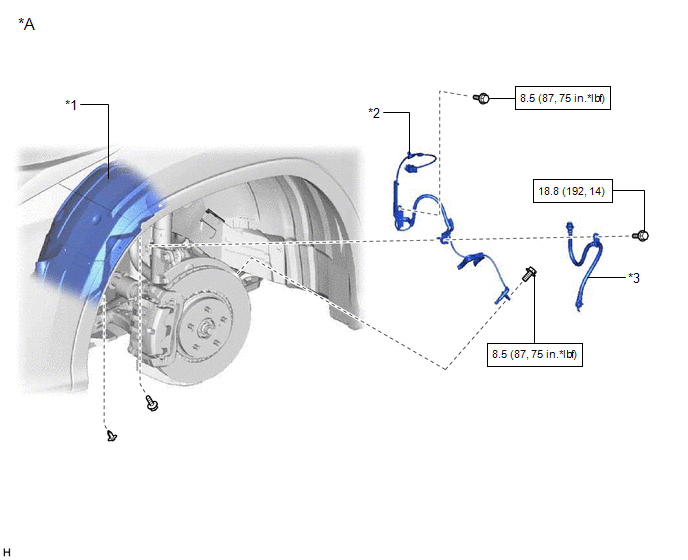

| *A |
w/o AVS |
- |
- |
| *1 |
FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY |
*2 |
FRONT SPEED SENSOR |
| *3 |
FRONT FLEXIBLE HOSE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

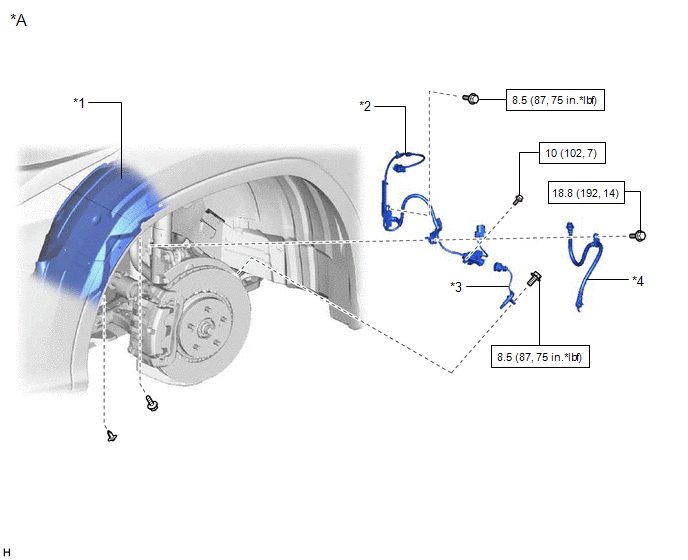

| *A |
w/ AVS |
- |
- |
| *1 |
FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY |
*2 |
FRONT SKID CONTROL SENSOR WIRE |
| *3 |
FRONT SPEED SENSOR |
*4 |
FRONT FLEXIBLE HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
