Installation [09/2020 - ]: Procedure

  1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Engage the guide and install the child restraint seat tether anchor bracket with the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  2. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

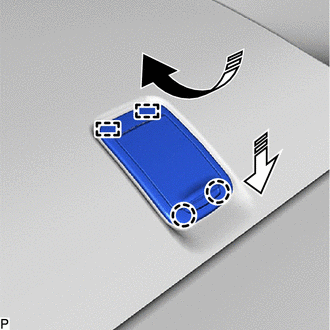

    1. Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the child restraint seat tether anchor cover.
      GTY954064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  3. INSTALL REAR SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  5. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 7
