Removal [09/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. DISCONNECT FRONT SEATBACK PAD WITH COVER

    See step  4

  3. REMOVE INNER NO. 1 FRONT SEAT CUSHION SHIELD

    See step  5

  4. REMOVE FRONT SEAT CUSHION SHIELD

    See step  6

  5. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    See step  10

  6. REMOVE RECLINING POWER SEAT SWITCH KNOB

    See step  11

  7. REMOVE POSITION CONTROL ECU AND SWITCH ASSEMBLY

    See step  7

  8. REMOVE FRONT LUMBAR POWER SEAT SWITCH

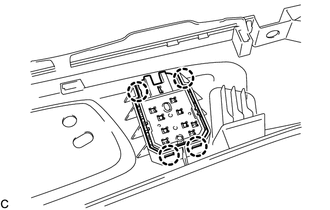

    1. Disengage the 4 claws to remove the front lumbar power seat switch from the front seat cushion shield.
      GTY498927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
