Inspection [09/2014 - 03/2019]: Procedure

  1. INSPECT OUTER MIRROR RH
    1. Check the outer mirror heater operation.

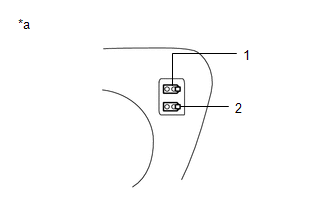

      GTY461159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Outer Mirror RH)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 2 25°C (77°F) 3.57 to 4.83 Ω

        If the result is not as specified, replace the outer mirror RH.

    2. Check the operation of the outer rear view mirror indicator. (w/ Blind Spot Monitor System)
      NOTE:

      Do not apply a voltage of more than 6 V.

      1. Connect 4 dry-cell batteries (1.5 V each) in series.
      2. Connect a positive lead from the batteries to terminal 2 and a negative lead to terminal 1 and check that the outer rear view mirror indicator comes on.

        OK

        Tester Connection Specified Condition
        6 V battery positive (+) → Terminal 2
        6 V battery negative (-) → Terminal 1        		 Outer rear view mirror indicator comes on

        If the result is not as specified, replace the outer mirror RH.

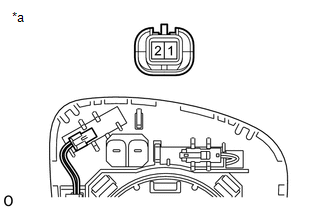

        GTY460088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror RH)
  2. INSPECT OUTER MIRROR LH
    1. Check the outer mirror heater operation.

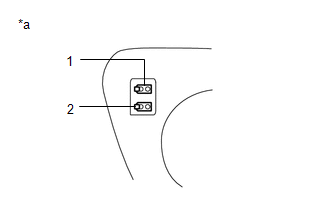

      GTY458311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Outer Mirror LH)
      1. Measure the resistance according the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 2 25°C (77°F) 3.57 to 4.83 Ω

        If the result is not as specified, replace the outer mirror LH.

    2. Check the operation of the outer rear view mirror indicator. (w/ Blind Spot Monitor System)
      NOTE:

      Do not apply a voltage of more than 6 V.

      1. Connect 4 dry-cell batteries (1.5 V each) in series.
      2. Connect a positive lead from the batteries to terminal 2 and a negative lead to terminal 1 and check that the outer rear view mirror indicator comes on.

        OK

        Tester Connection Specified Condition
        6 V battery positive (+) → Terminal 2
        6 V battery negative (-) → Terminal 1        		 Outer rear view mirror indicator comes on

        If the result is not as specified, replace the outer mirror LH.

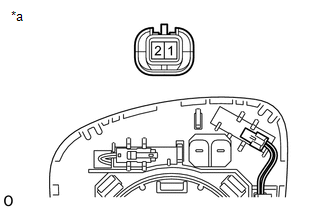

        GTY462823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror LH)
