Mirror System (Ext) - Service Information
>>
Outer Rear View Mirror Cover
>>
Components [09/2014 - 03/2019]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [09/2014 - 03/2019]

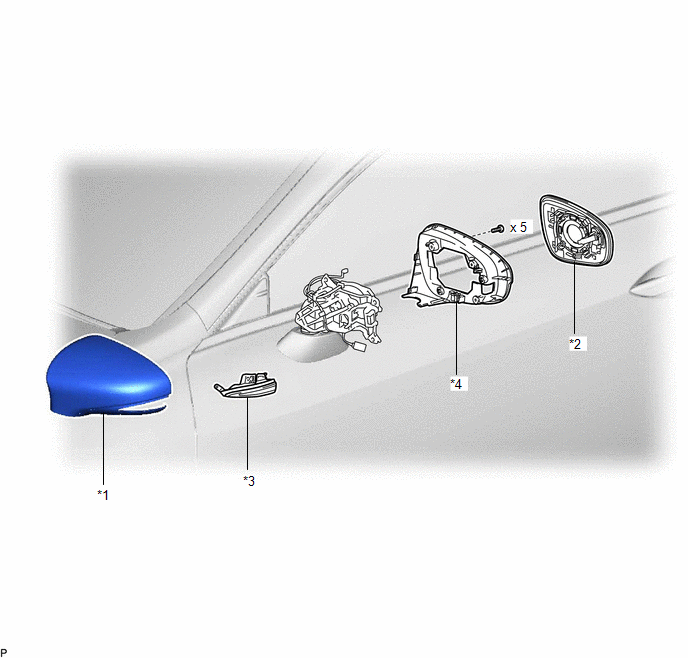

Fig 1: Outer Rear View Mirror Cover Replacement Components [09/2014 - 03/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 2 OUTER MIRROR COVER
*2
OUTER MIRROR
*3
SIDE TURN SIGNAL LIGHT ASSEMBLY
*4
VISOR ASSEMBLY
