Components [11/2017 - ]

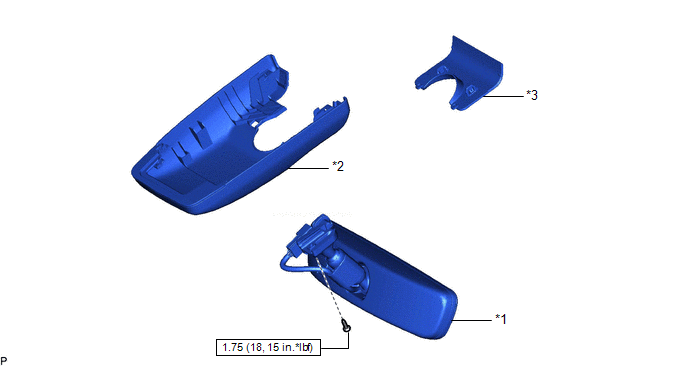

Fig 1: Inner Rear View Mirror Replacement Components With Torque Specifications [11/2017 - ]
GTY1085060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INNER REAR VIEW MIRROR ASSEMBLY *2 NO. 1 FORWARD RECOGNITION COVER
*3 NO. 2 FORWARD RECOGNITION COVER - -
N.m (kgf/cm, ft.lbf): Specified torque - -
