Components [09/2014 - 11/2017]

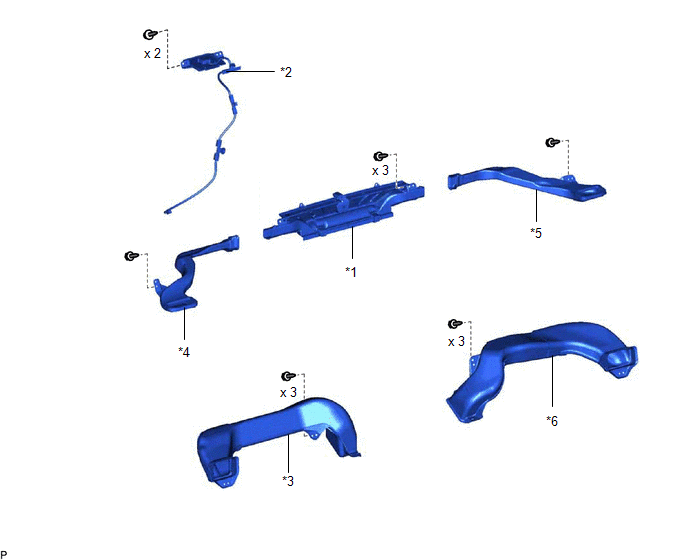

Fig 1: Navigation Antenna Replacement Components [09/2014 - 11/2017]
GTY465327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DEFROSTER NOZZLE ASSEMBLY *2 NAVIGATION ANTENNA ASSEMBLY
*3 NO. 1 HEATER TO REGISTER DUCT *4 NO. 1 SIDE DEFROSTER NOZZLE DUCT
*5 NO. 2 SIDE DEFROSTER NOZZLE DUCT *6 NO. 3 HEATER TO REGISTER DUCT
