Maintenance Reminder Light (Reset Procedures)
>>
Engine Oil Replacement Reminder
>>
Engine Oil Replacement Reminder Reset - Procedure 19
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Oil Replacement Reminder Reset - Procedure 19
NOTE:
To reset the message indicating maintenance is required, see appropriate figure.

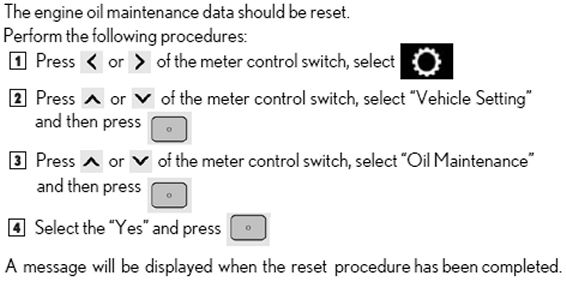

Fig 1: Maintenance Required Reset Procedure (ES, GS, IS & LS Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

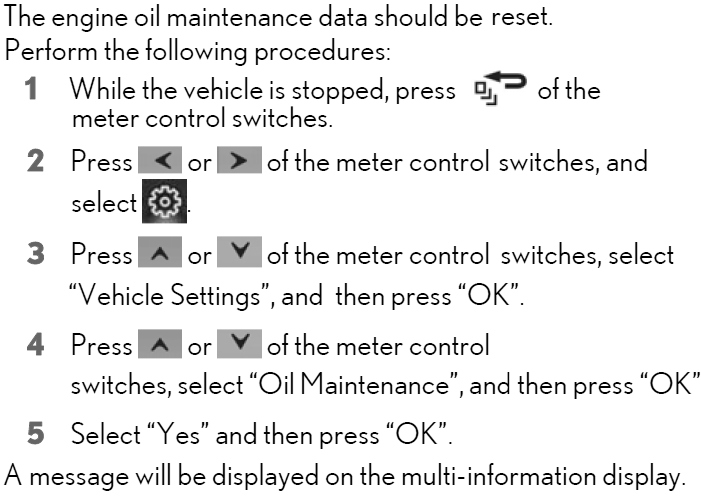

Fig 2: Maintenance Required Reset Procedure (LC Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

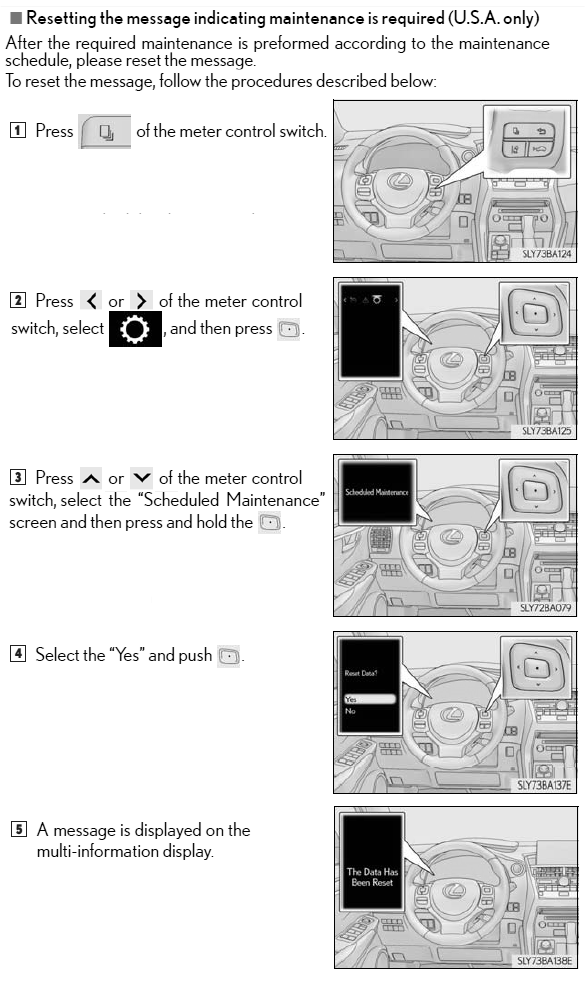

Fig 3: Maintenance Required Reset Procedure (LX & RX Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

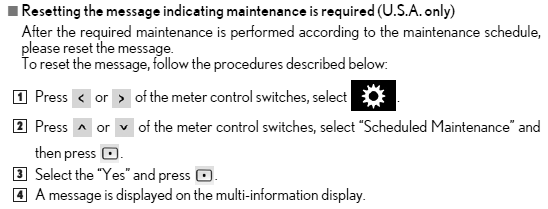

Fig 4: Maintenance Required Reset Procedure (RC Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

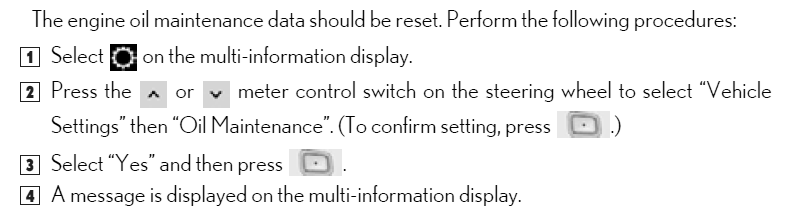

Fig 5: Maintenance Required Reset Procedure (NX Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
