Fuel Pump Control Circuit [09/2014 - ]: Wiring Diagram

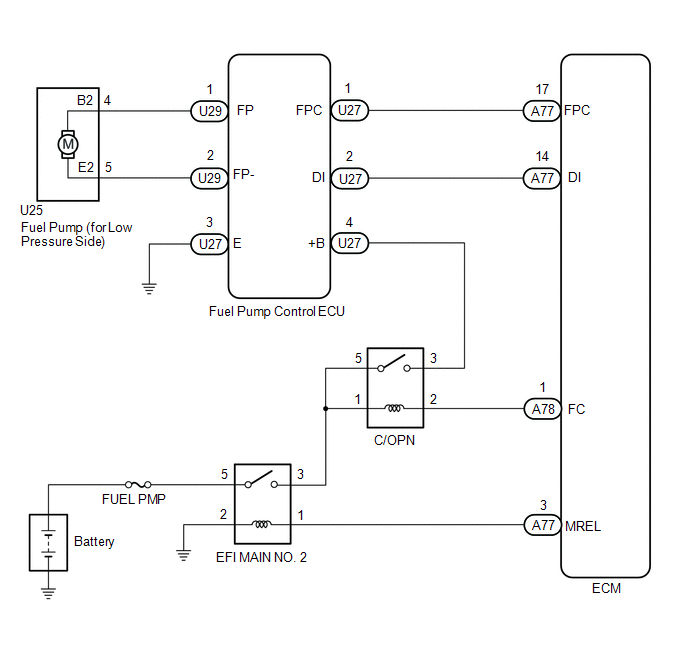

for fuel pump (for low pressure side) (brush type motor)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

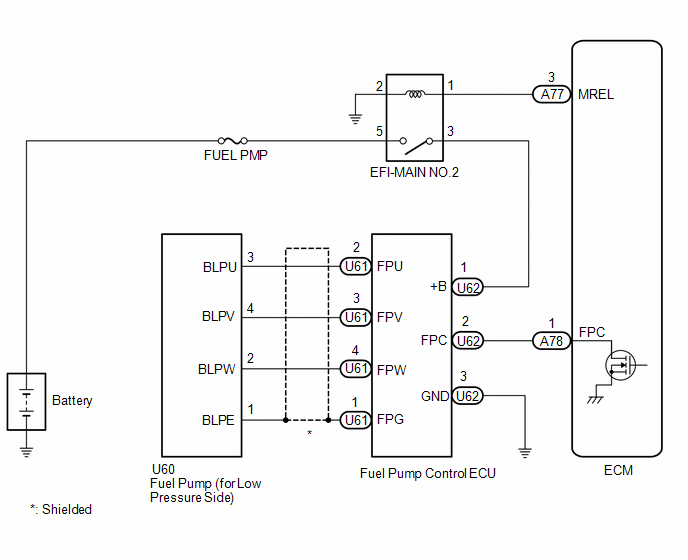

for fuel pump (for low pressure side) (brushless type motor)
