Components [09/2014 - 10/2022]

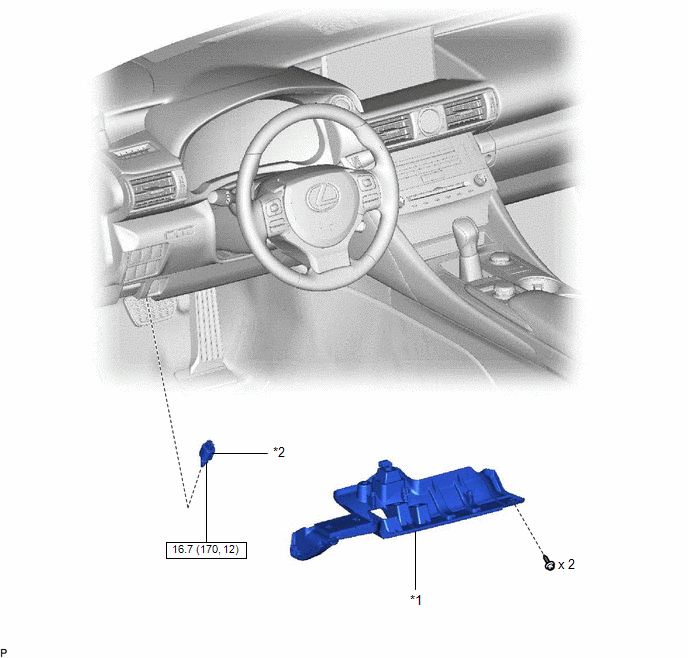

Fig 1: Stop Light Switch Replacement Components With Torque Specifications [09/2014 - 10/2022]
GTY509487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *2 STOP LIGHT SWITCH ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
