Pre-Collision System Warning Buzzer
>>
Components [09/2017 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [09/2017 - ]

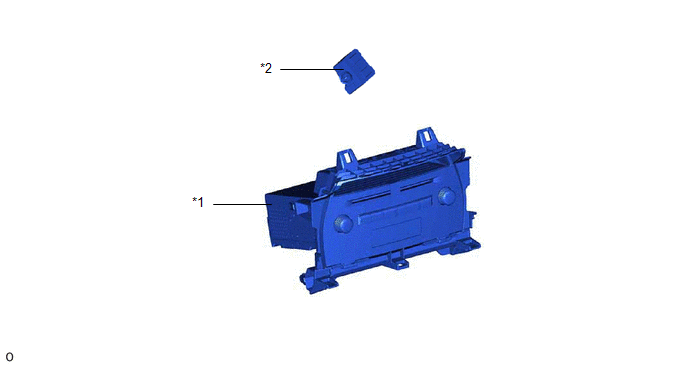

Fig 1: Pre-Collision System Warning Buzzer Replacement Components [09/2017 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
RADIO RECEIVER ASSEMBLY
*2
SKID CONTROL BUZZER ASSEMBLY (PRE-COLLISION SYSTEM WARNING BUZZER)
