Components [09/2015 - ]

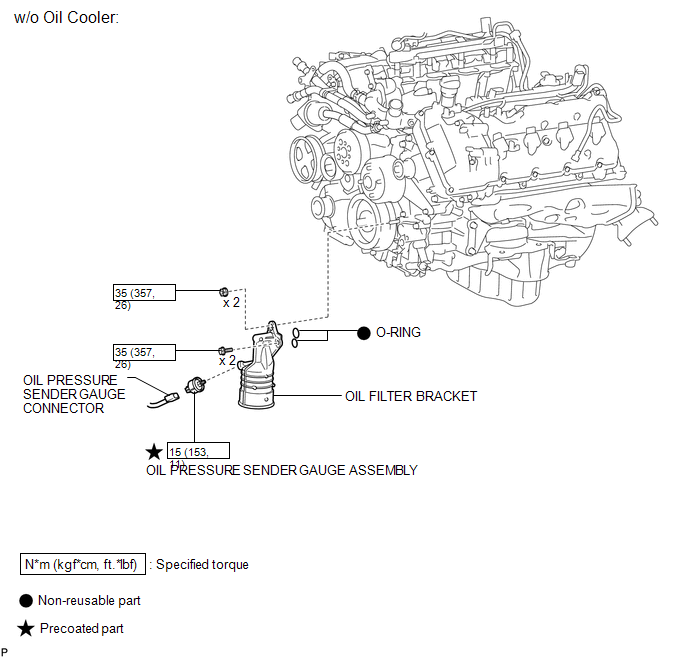

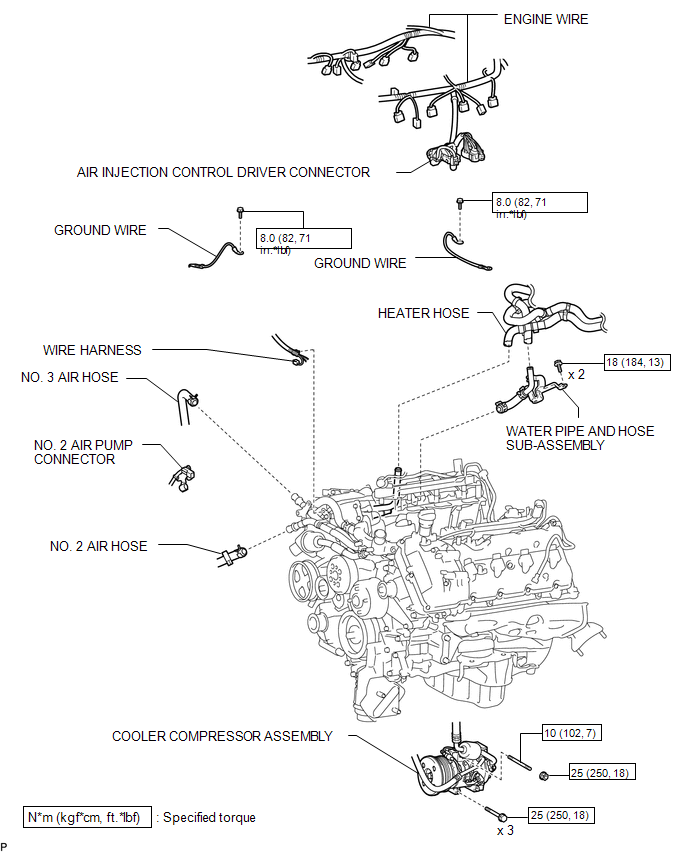

Fig 1: Engine Oil Pump Replacement Components With Torque Specifications (1 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

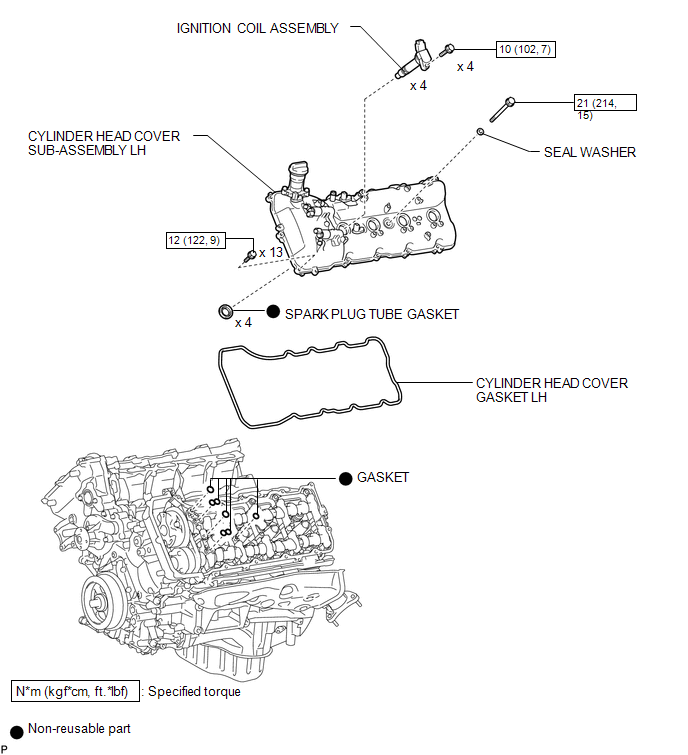

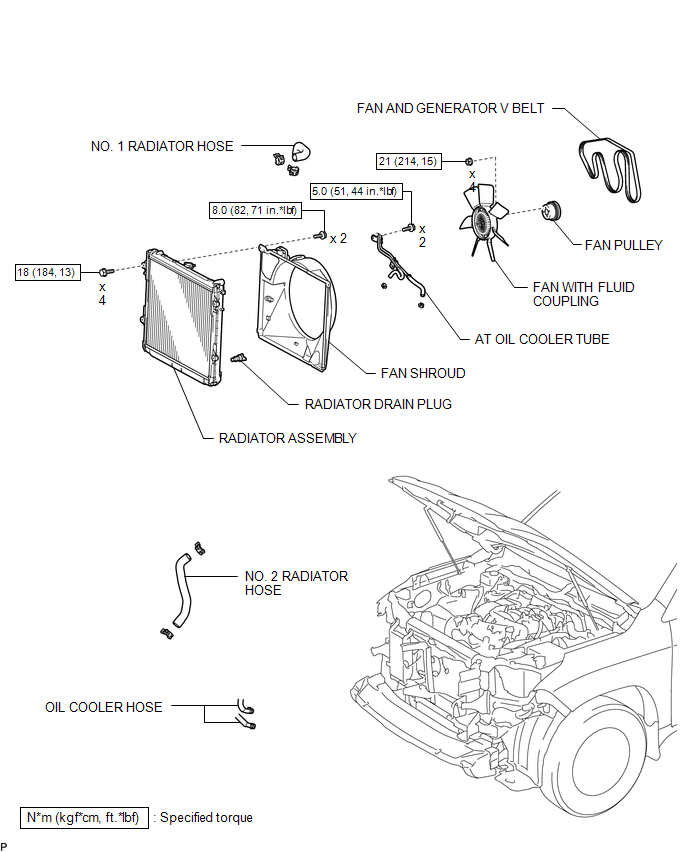

Fig 2: Engine Oil Pump Replacement Components With Torque Specifications (2 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

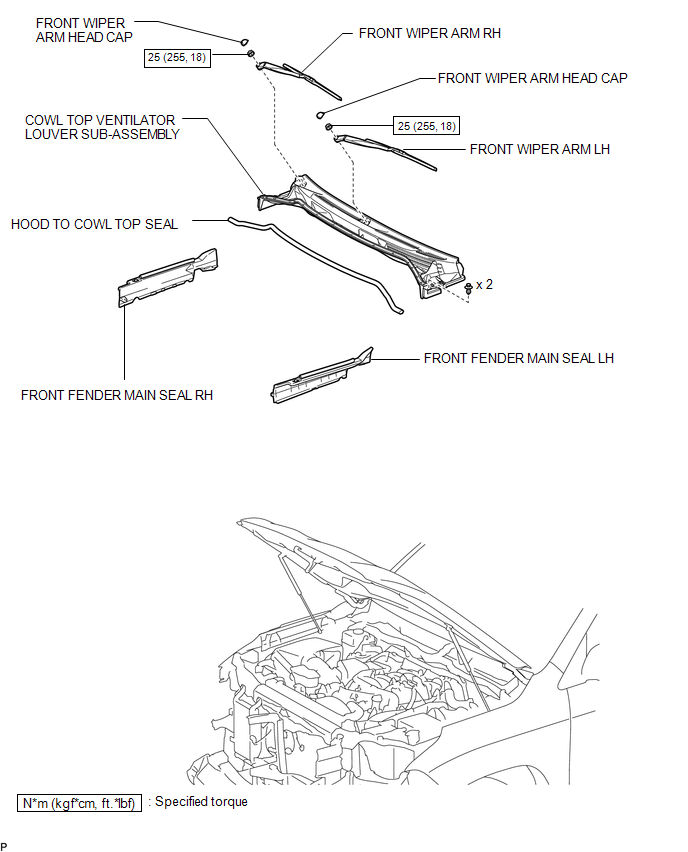

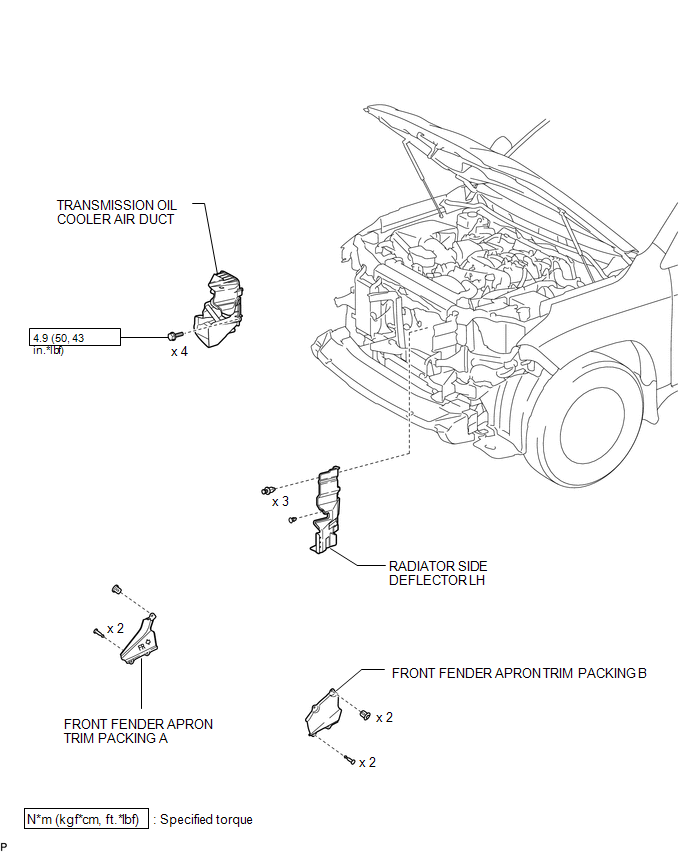

Fig 3: Engine Oil Pump Replacement Components With Torque Specifications (3 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

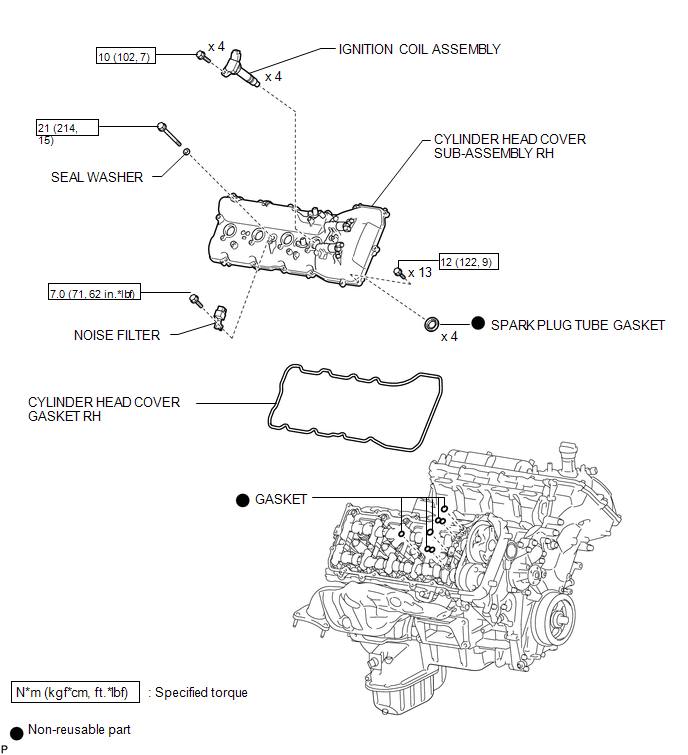

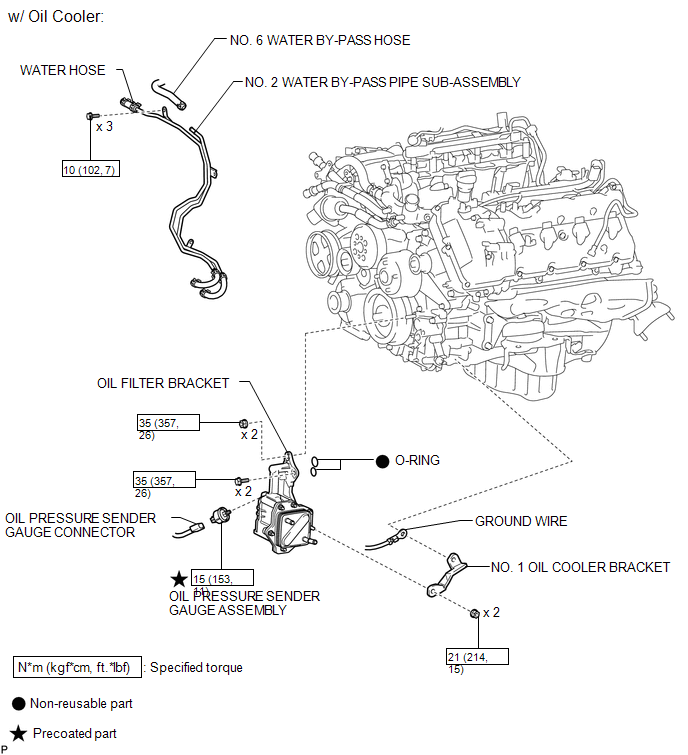

Fig 4: Engine Oil Pump Replacement Components With Torque Specifications (4 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

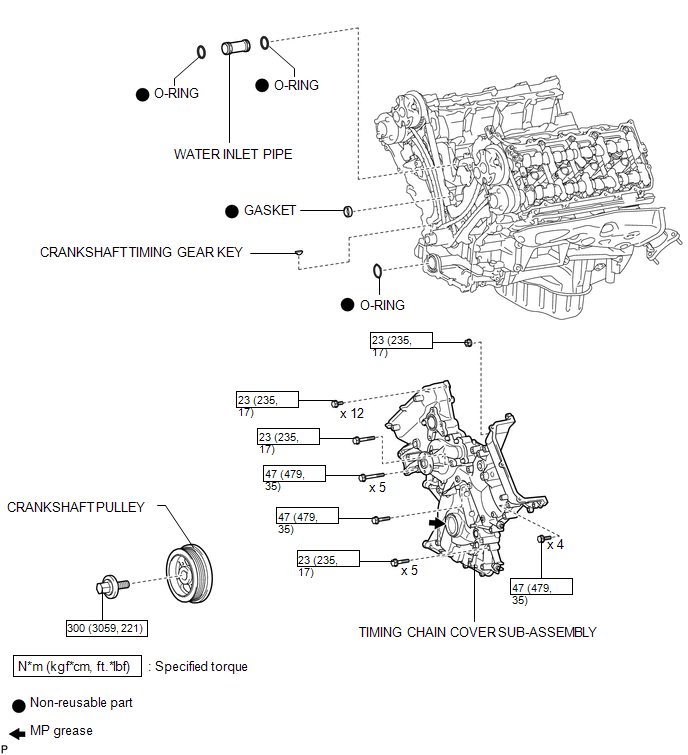

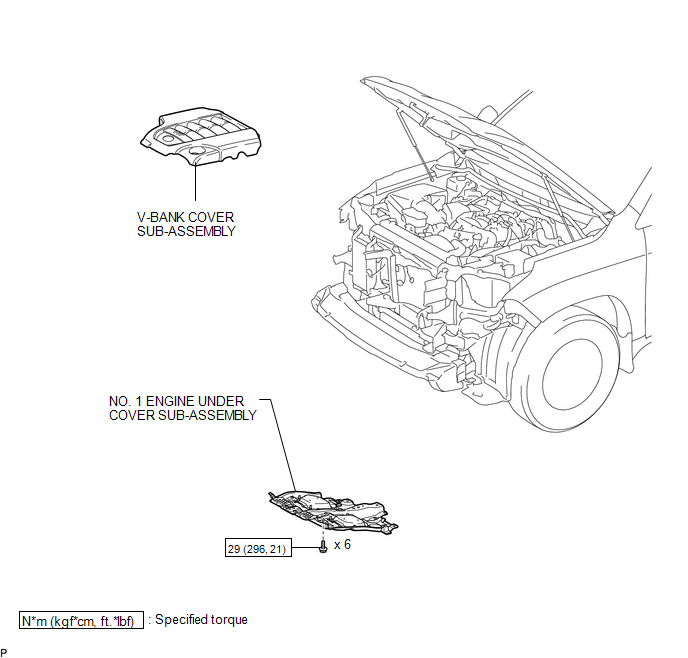

Fig 5: Engine Oil Pump Replacement Components With Torque Specifications (5 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

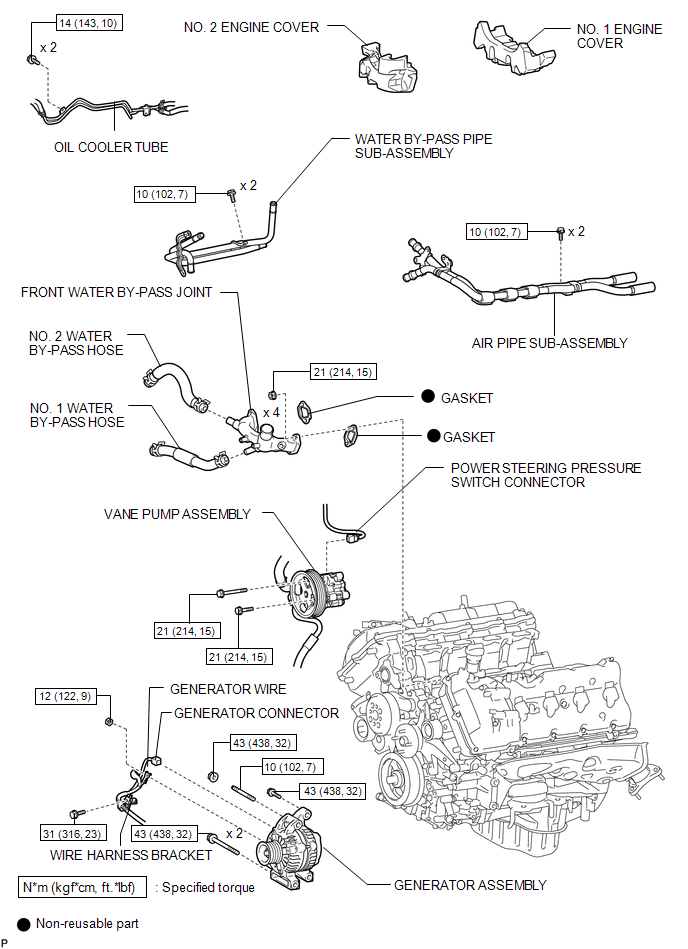

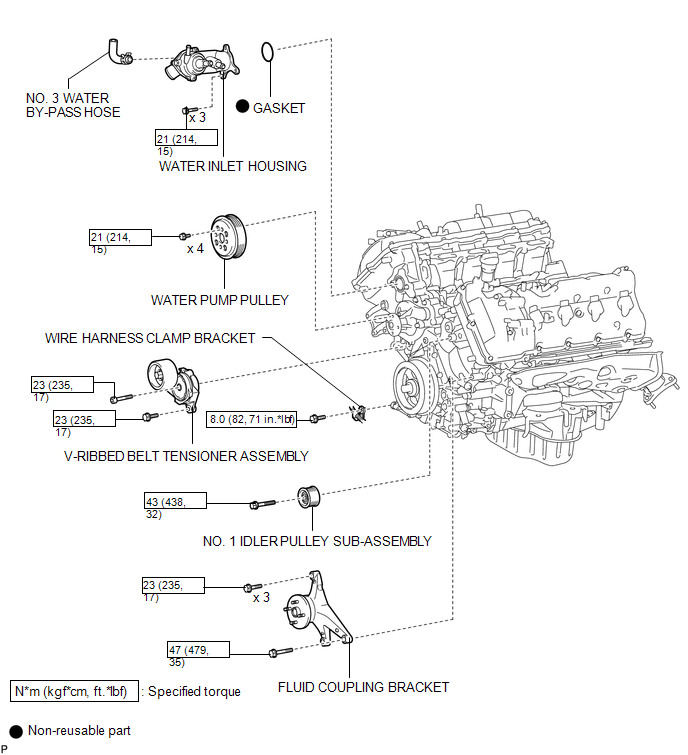

Fig 6: Engine Oil Pump Replacement Components With Torque Specifications (6 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

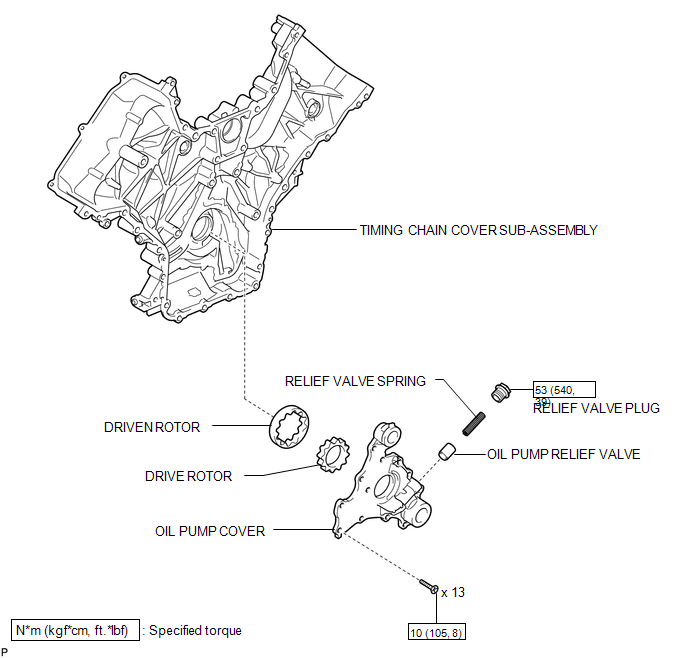

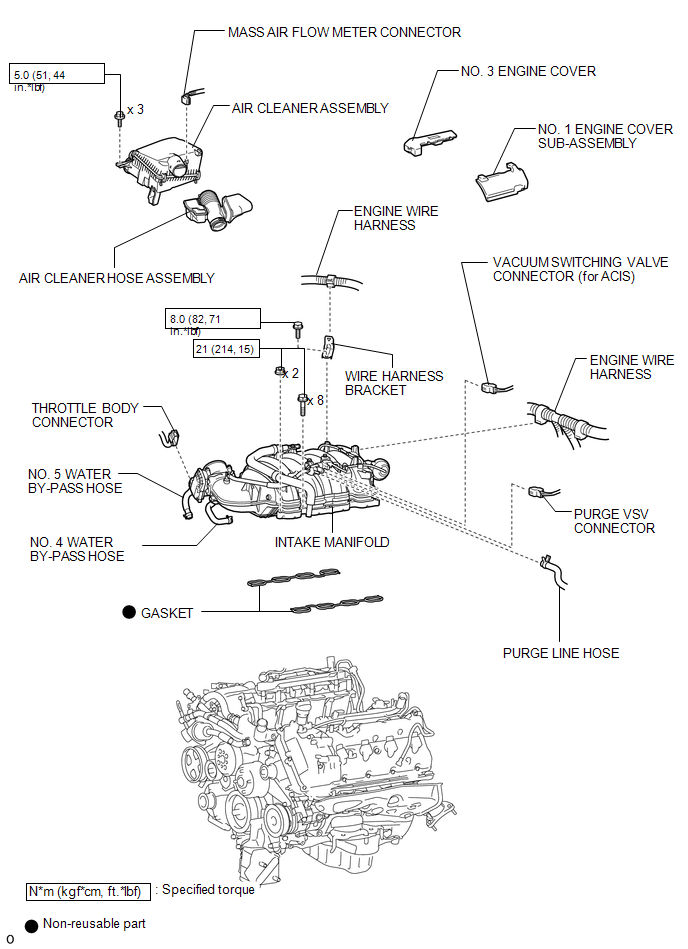

Fig 7: Engine Oil Pump Replacement Components With Torque Specifications (7 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

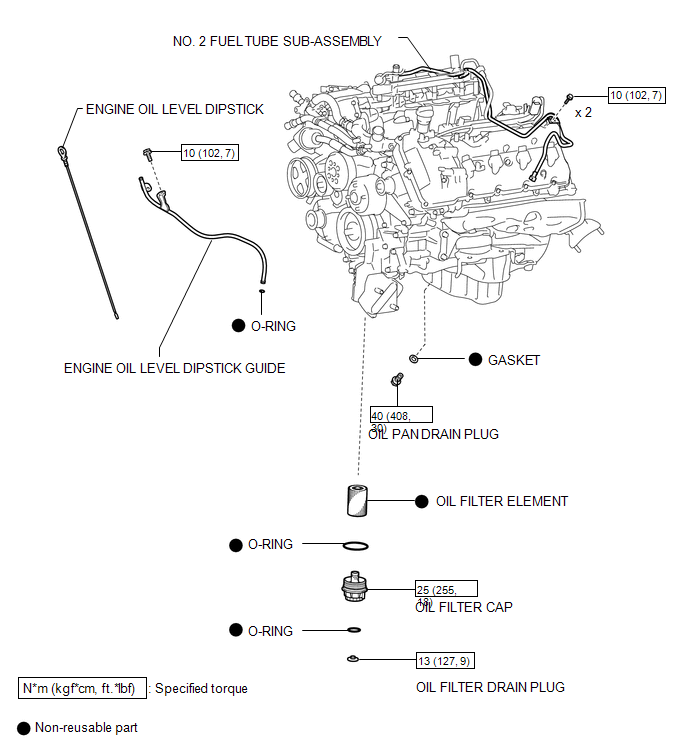

Fig 8: Engine Oil Pump Replacement Components With Torque Specifications (8 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Oil Pump Replacement Components With Torque Specifications (9 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Oil Pump Replacement Components With Torque Specifications (10 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Oil Pump Replacement Components With Torque Specifications (11 of 15)

Fig 12: Engine Oil Pump Replacement Components With Torque Specifications (12 of 15)

Fig 13: Engine Oil Pump Replacement Components With Torque Specifications (13 of 15)

Fig 14: Engine Oil Pump Replacement Components With Torque Specifications (14 of 15)

Fig 15: Engine Oil Pump Replacement Components With Torque Specifications (15 of 15)
