Inspection [09/2015 - ]: Procedure

INSPECT ENGINE OIL LEVEL SENSOR

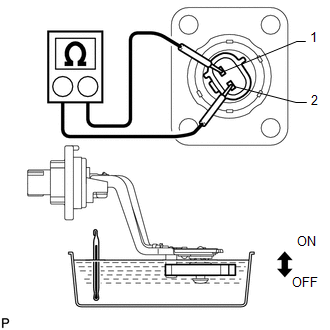

GTY666724

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Partially immerse the sensor in an oil bath and warm up the oil bath.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
1 - 2	ON, 20°C (68°F)	Below 1 Ω
	OFF, 20°C (68°F)
	ON, 60°C (140°F)
	OFF, 60°C (140°F)	10 kΩ or higher

If the result is not as specified, replace the sensor.
