Components [12/2017 - 10/2020]

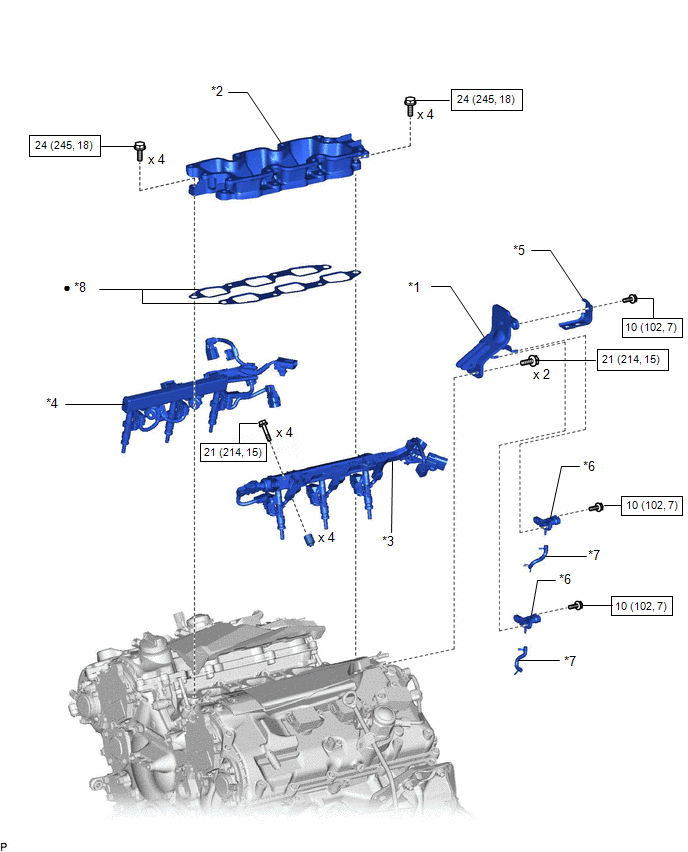

Fig 1: Intake Manifold Replacement Components With Torque Specifications [12/2017 - 10/2020] (1 Of 2)
| *1 | FUEL HOSE PROTECTOR | *2 | INTAKE MANIFOLD |
| *3 | NO. 1 FUEL DELIVERY PIPE SUB-ASSEMBLY LH | *4 | NO. 1 FUEL DELIVERY PIPE SUB-ASSEMBLY RH |
| *5 | FUEL HOSE BRACKET | *6 | NO. 2 TURBO PRESSURE SENSOR |
| *7 | VACUUM HOSE | *8 | NO. 2 INTAKE MANIFOLD GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

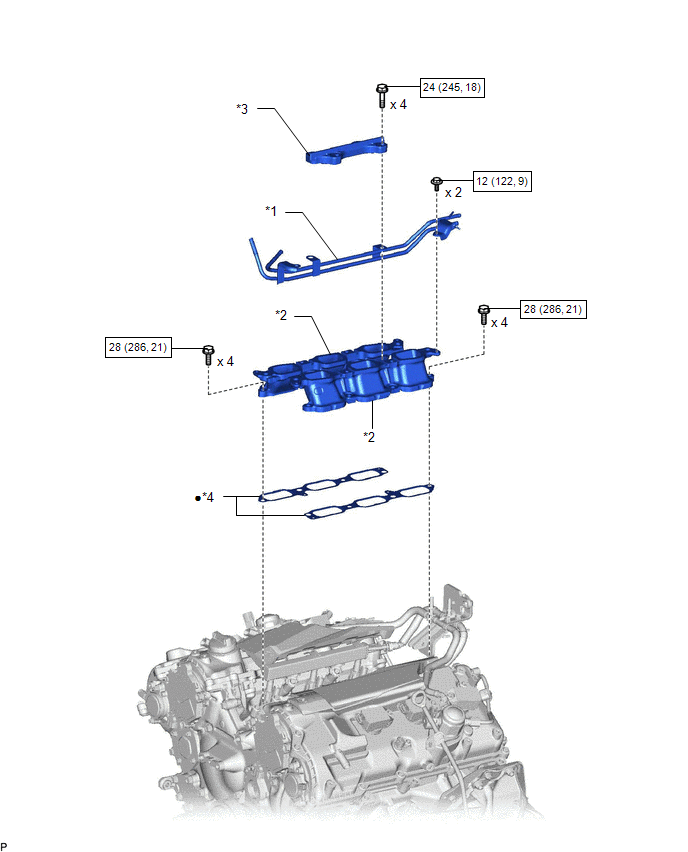

Fig 2: Intake Manifold Replacement Components With Torque Specifications [12/2017 - 10/2020] (2 Of 2)
| *1 | FUEL VAPOR FEED PIPE SUB-ASSEMBLY | *2 | LOWER INTAKE MANIFOLD SUB-ASSEMBLY |
| *3 | NO. 2 MANIFOLD STAY | *4 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
