Components [12/2017 - ]

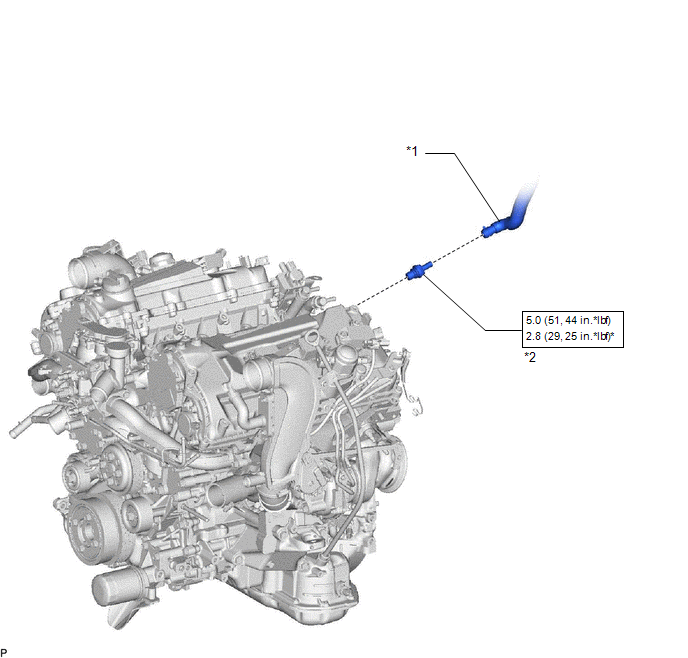

Fig 1: PCV Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
PCV HOSE
*2
PCV VALVE SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque
*
For use with ball joint lock nut wrench
