Removal [10/2020 - 11/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY
    1. for Sport Package:

      Refer to REMOVAL [10/2020 - 11/2021]

    2. except Sport Package:

      Refer to REMOVAL [10/2020 - 11/2021]

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    NOTE:

    Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

    1. Remove the 2 bolts and screw.

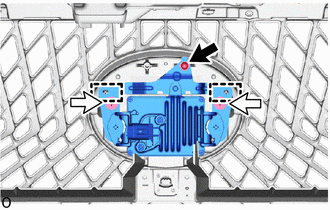

      GTY789176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
    2. Detach the guide and remove the millimeter wave radar sensor assembly.
