Components [01/2017 - 09/2018]

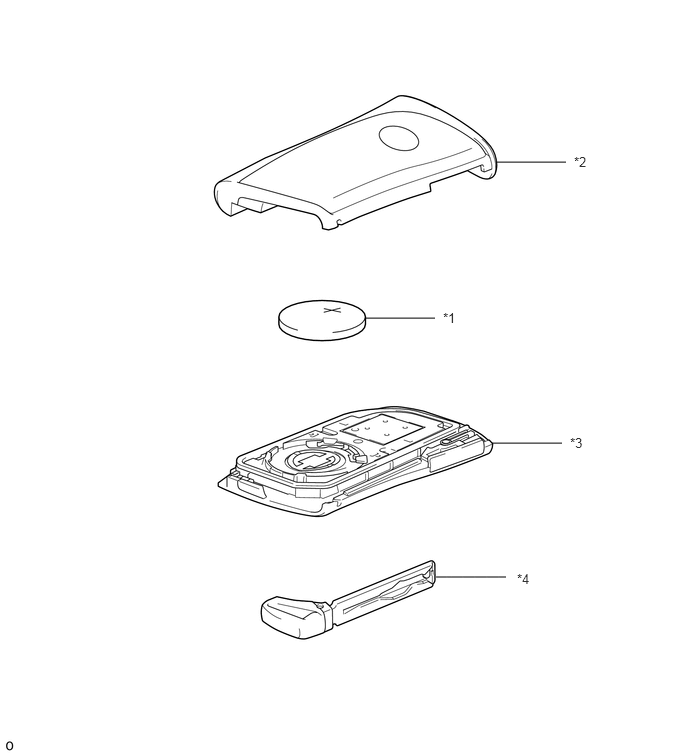

Fig 1: Transmitter Battery Replacement Components [01/2017 - 09/2018]
GTY826890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMITTER BATTERY *2 TRANSMITTER HOUSING COVER
*3 TRANSMITTER HOUSING CASE *4 MECHANICAL KEY
