Components [01/2017 - ]

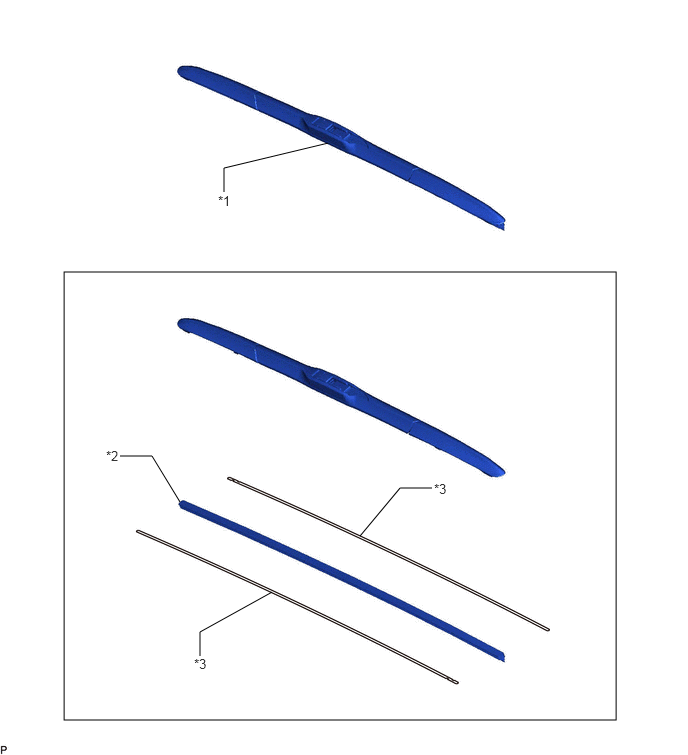

Fig 1: Front Wiper Rubber Replacement Components
GTY817433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT WIPER BLADE LH *2 WIPER RUBBER LH
*3 FRONT WIPER RUBBER BACKING PLATE - -
