Inspection [01/2017 - ]: Procedure
- INSPECT FUEL PUMP
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

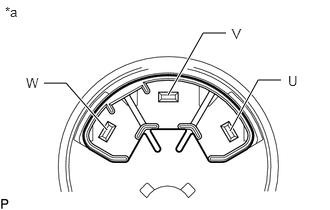

| *a |
Component without harness connected
(Fuel Pump) |
Inspect the resistance of the fuel pump.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
| Tester Connection |
Specified Condition |
| U - V |
0.05 to 3.0 Ω |
| V - W |
0.05 to 3.0 Ω |
| U - W |
0.05 to 3.0 Ω |
If the result is not as specified, replace the fuel pump.
