Installation [05/2023 - ]: Procedure

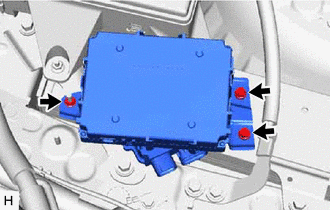

1. Install the brake control power supply with bracket assembly to the vehicle body with the 2 nuts.

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

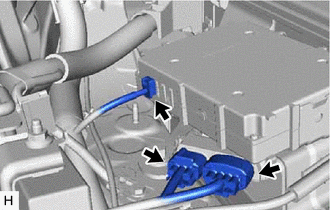

2. Connect the connector to the brake control power supply with bracket assembly.

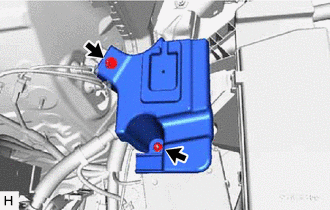

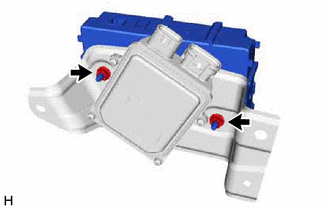

1. Install the fuel pump control ECU bracket to the vehicle body with the 2 bolts and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

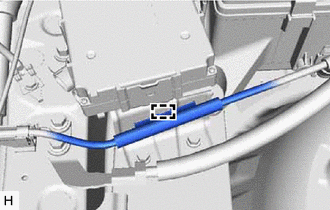

2. Attach the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Connect the 2 fuel pump control ECU connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Connect the brake control power supply connector.

1. Install the No. 1 deck board bracket LH with the bolt and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 15.75 N.m (161 kgf/cm, 12 ft.lbf)

Refer to REASSEMBLY [05/2023 - ]

Refer to INSTALLATION [05/2023 - ]

Refer to DTC CHECK / CLEAR [09/2018 - ]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [05/2023 - ]
