Removal [07/2020 - ]: Procedure

Refer to PROCEDURE - Step 14 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 14 [05/2023 - ]

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 17 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 17 [05/2023 - ]

Refer to PROCEDURE - Step 18 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 18 [05/2023 - ]

Refer to PROCEDURE - Step 19 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 19 [05/2023 - ]

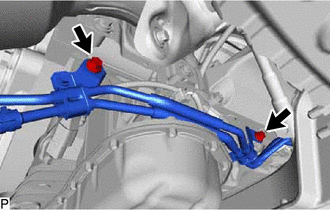

1. Remove the 2 bolts and separate the oil cooler tube.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

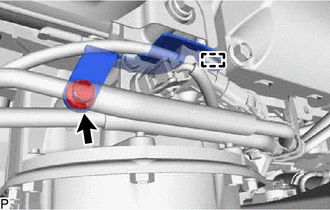

1. Detach the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and crank position sensor bracket.

1. Disconnect the engine oil level sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Rotate the engine oil level sensor 180° counterclockwise and remove it from the oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Cut off the gasket as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Cutting Position
   *b	Supply Part

5. Remove the gasket from the engine oil level sensor.

   HINT:

   After cutting off the portions of the gasket shown in the illustration, remove only the outer part of the gasket.
