Yaw Rate And Acceleration Sensor
>>
Components [07/2020 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [07/2020 - ]

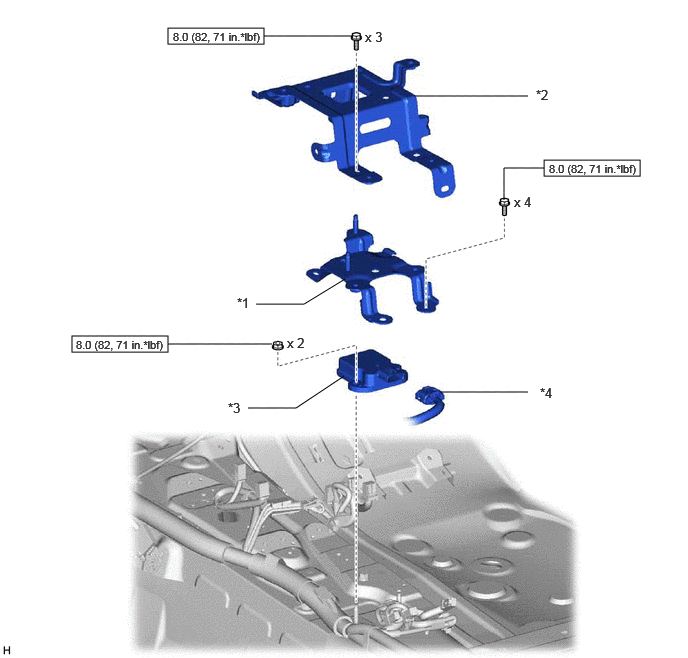

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 CONSOLE BOX MOUNTING BRACKET
*2
NO. 1 CONSOLE BOX SUPPORT
*3
YAW RATE SENSOR
*4
CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque
-
-
