Removal [10/2017 - 09/2020]: Procedure

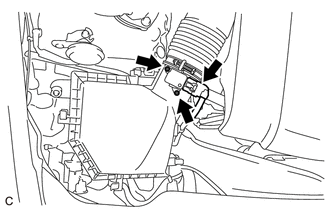

- REMOVE MASS AIR FLOW METER SUB-ASSEMBLY
- Disconnect the mass air flow meter sub-assembly connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
