Removal [09/2020 - ]: Procedure
- REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

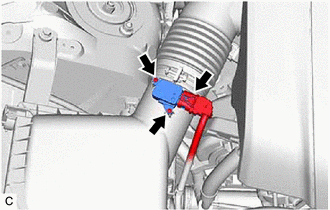

- Disconnect the mass air flow meter sub-assembly connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
