Pre-Collision System Warning Buzzer
>>
Components [08/2019 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [08/2019 - ]

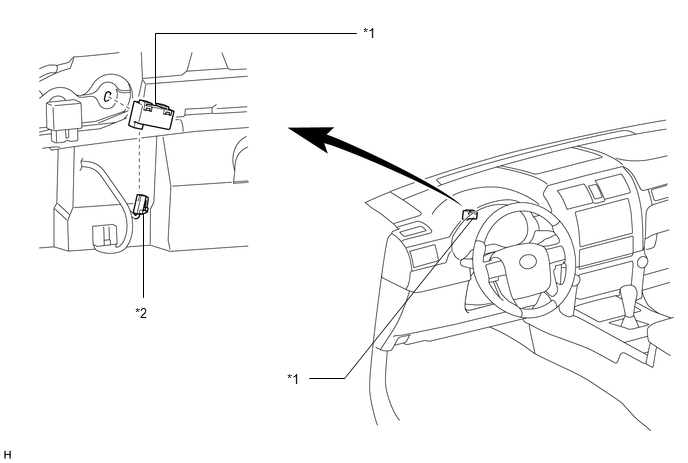

Fig 1: Pre-Collision System Warning Buzzer Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
SKID CONTROL BUZZER ASSEMBLY (PRE-COLLISION SYSTEM WARNING BUZZER)
*2
CONNECTOR
