Removal [08/2015 - ]: Procedure

  1. REMOVE LOWER FRONT BUMPER COVER

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - ]

  2. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - ]

  3. REMOVE REAR ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 - ]

  4. DRAIN ENGINE OIL

    See step  1[08/2015 - 08/2020], or see step  1[08/2021 - ]

  5. DISCONNECT OIL COOLER TUBE SUB-ASSEMBLY

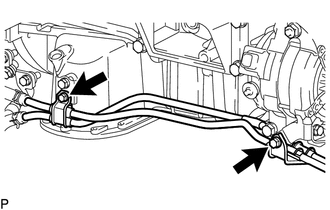

    1. GTY467795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and disconnect the oil cooler tube sub-assembly.

  6. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.
    2. Remove the 4 bolts and engine oil level sensor.

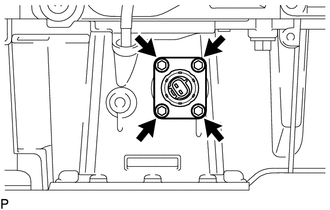

      GTY467794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Cut away part of the gasket and remove the gasket from the engine oil level sensor.
      GTY668346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Cutting Position
      *b Supply Part

      HINT:

      Remove the only the outer part of the gasket.
