Components [06/2018 - ]

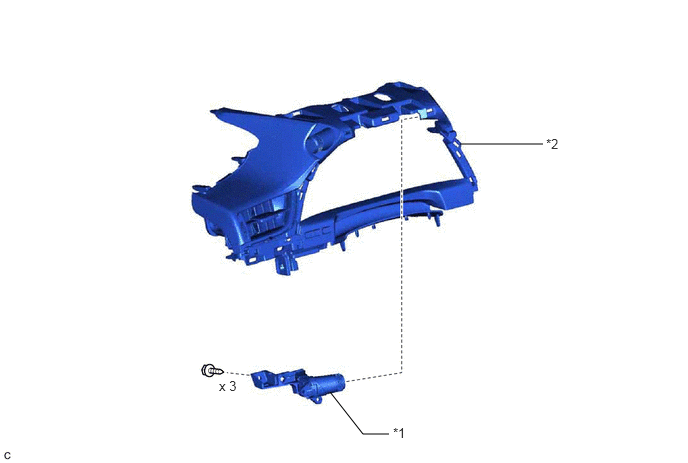

Fig 1: Combination Switch Replacement Components
GTY803200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) *2 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
