Heated Steering Wheel Controller
>>
Components [06/2018 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [06/2018 - ]

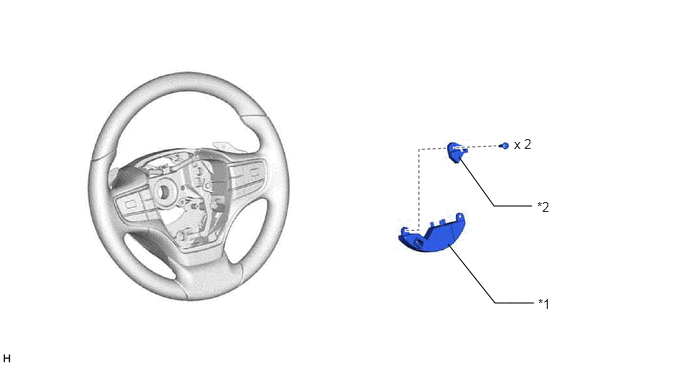

Fig 1: Heated Steering Wheel Controller Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HEATED STEERING WHEEL CONTROLLER (STEERING VIBRATION ECU)
*2
STEERING WHEEL PAD BRACKET
