Components [10/2018 - 07/2022]

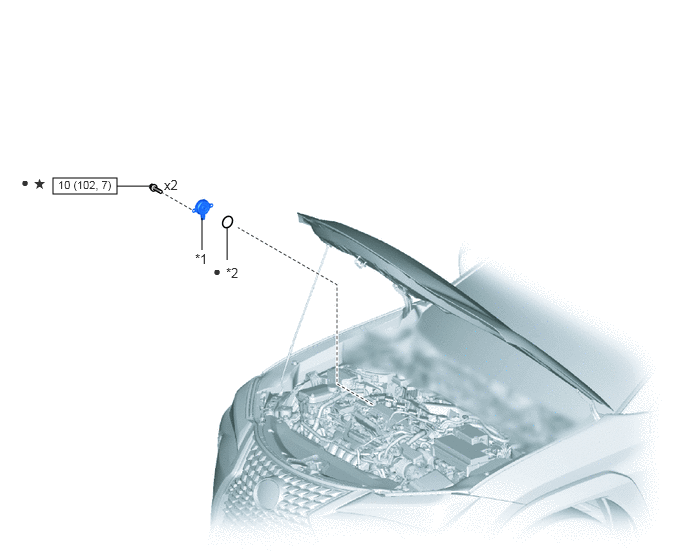

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications
GTY774989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY *2 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
* Precoated part - -
