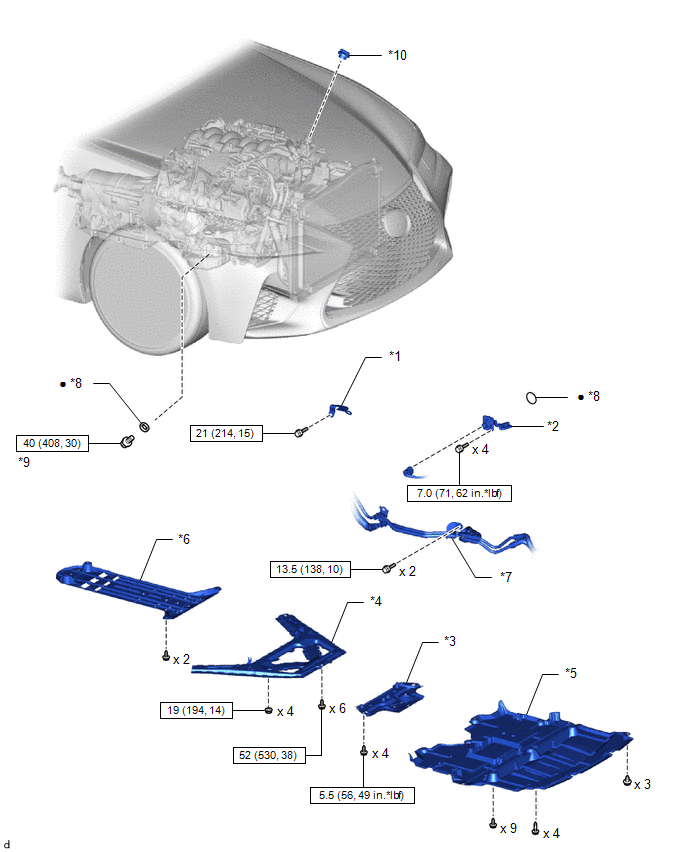

Components [10/2015 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | CRANK POSITION SENSOR BRACKET | *2 | ENGINE OIL LEVEL SENSOR |
| *3 | FRONT LOWER SUSPENSION MEMBER PROTECTOR | *4 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY |
| *5 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *6 | NO. 2 ENGINE UNDER COVER |
| *7 | OIL COOLER TUBE | *8 | GASKET |
| *9 | OIL PAN DRAIN PLUG | *10 | OIL FILLER CAP SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
