Components [10/2015 - ]: Illustration

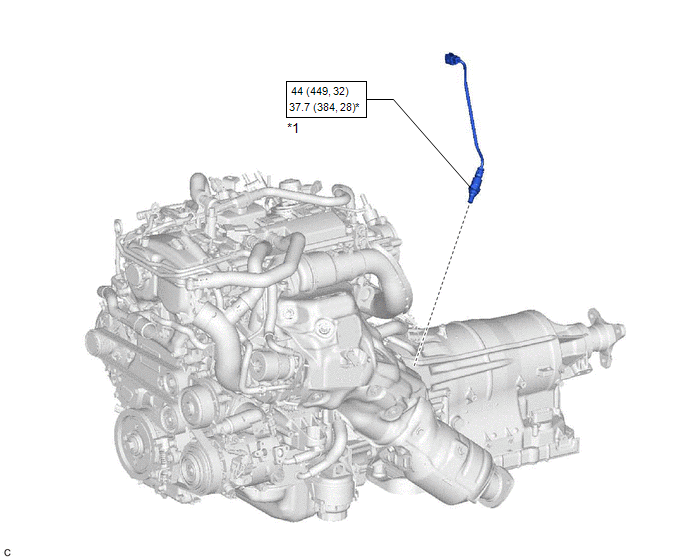

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY668940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HEATED OXYGEN SENSOR - -
N*m (kgf*cm, ft.*lbf): Specified torque * for use with SST
