Components [10/2015 - 08/2019]

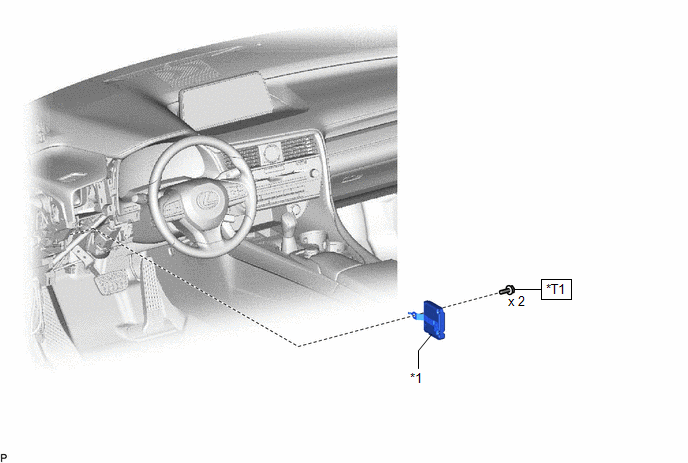

Fig 1: Driving Support ECU Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
DRIVING SUPPORT ECU ASSEMBLY
-
-
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
*T1
for Type A: 7.0 (71, 62 in.*lbf)
for Type B: 4.5 (46, 40 in.*lbf)
for Type C: 12.5 (127, 9)
-
-
