Removal [08/2019 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 36

  3. REMOVE YAW RATE SENSOR ASSEMBLY

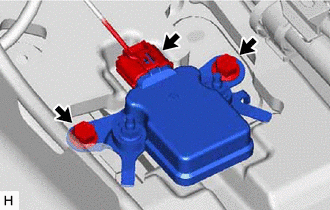

    1. Disconnect the connector from the yaw rate sensor assembly.
      GTY620570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and yaw rate sensor assembly.
      NOTE:
      • Do not drop the yaw rate sensor assembly.
      • If the yaw rate sensor assembly is dropped, replace it with a new one.
