Installation [12/2017 - ]: Procedure

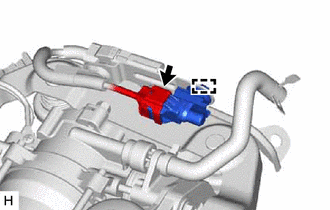

- INSTALL HEIGHT CONTROL COMPRESSOR THERMISTOR ASSEMBLY
- INSTALL W/O RELAY COMPRESSOR & DRYER ASSEMBLY
Refer to INSTALLATION [12/2017 - ]
- AIR CHARGING
Refer to PRECAUTION [12/2017 - ]
HINT:
- Make sure to use the nitrogen gas injector (SST) and adapter (SST).
- Select an adapter (SST) that matches the standard of the nitrogen cylinder and install it.
- The adapter (SST) is not required for JIS standard.
- SST: 09761-50010
- SST: 09761-0504009761-0505009761-0506009761-05070
- CHECK CONNECTIONS OF TUBES FOR AIR LEAKAGE
Refer to OPERATION CHECK [12/2017 - ]
- CHECK VEHICLE HEIGHT NOTE:
If the height control sensor link is removed, check the vehicle height.
- Change the height control switch from the "NORM" position to the "HIGH" position and back to the "NORM" position again.
- Measure the vehicle height.
Refer to PROCEDURE - Step 2 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]
- ADJUST VEHICLE HEIGHT
Refer to ADJUSTMENT [12/2017 - 10/2020] , or refer to ADJUSTMENT [10/2020 - 10/2023] , or refer to ADJUSTMENT [10/2023 - ]
NOTE:If the height control sensor has been replaced, be sure to adjust the vehicle height.
- CHECK HEIGHT CHANGE OPERATION
Refer to OPERATION CHECK [12/2017 - ]
