On-Vehicle Inspection [10/2017 - ]: Procedure
- INSPECT CAMSHAFT TIMING GEAR BOLT
- Remove the camshaft timing oil control solenoid assembly.
Refer to REMOVAL [10/2017 - ]

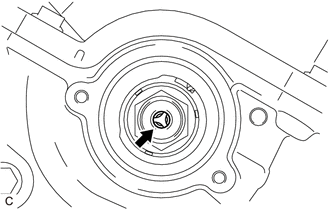

- Check the stroke of the plunger in the center of the camshaft timing gear bolt.
Standard Stroke
4.5 mm (0.177 in.) or more
HINT:
When pressing the plunger, there may be a stepped feeling. This is not a malfunction.
If the result is not as specified, replace the camshaft timing gear bolt.
- Install the camshaft timing oil control solenoid assembly.
Refer to INSTALLATION [10/2017 - ]
- Remove the camshaft timing oil control solenoid assembly.
