Removal [09/2014 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 1

  2. REMOVE POWER SWITCH

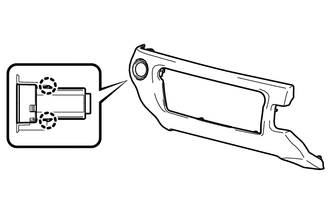

    1. Detach the 2 claws and remove the switch.
      GTY529729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
