Brake Control System (Service Information)
>>
Front Speed Sensor
>>
Components [09/2014 - ]
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [09/2014 - ]: Illustration

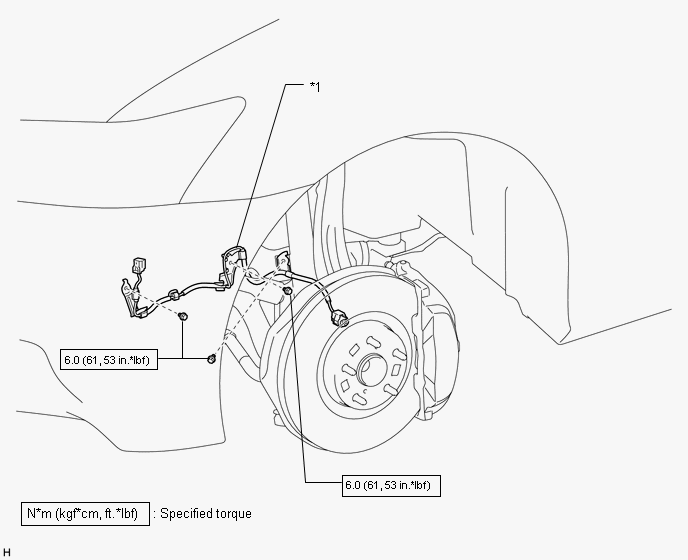

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

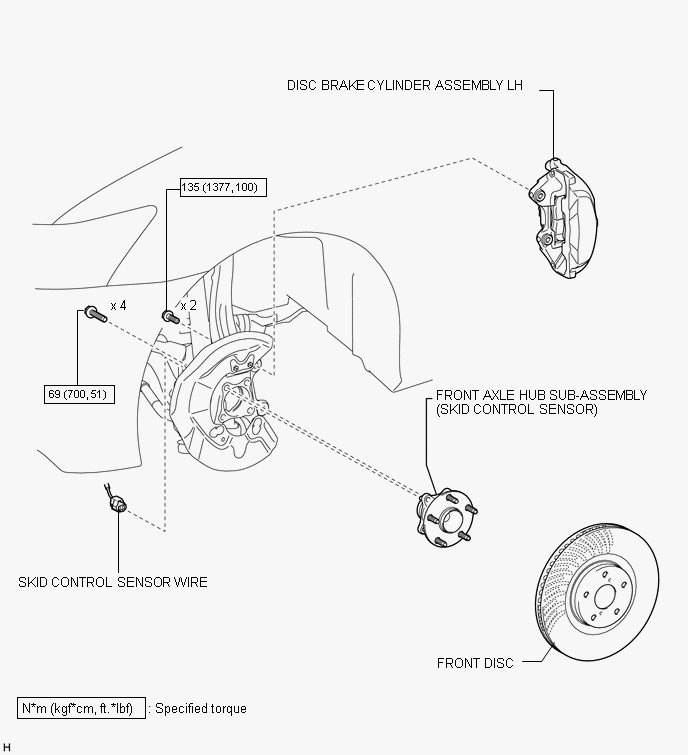

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
