Components [10/2015 - ]

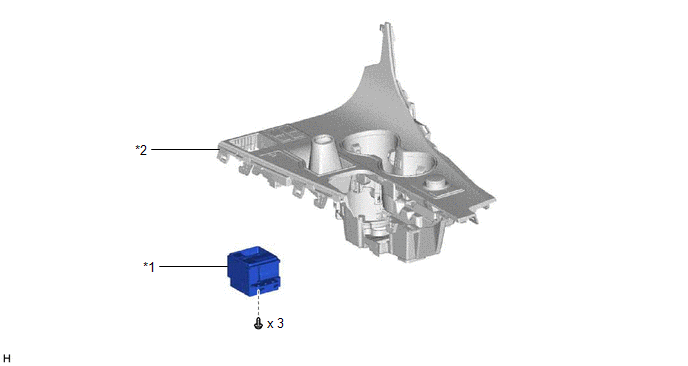

Fig 1: Brake Hold Switch Replacement Components
GTY683230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE HOLD SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) *2 CONSOLE PANEL SUB-ASSEMBLY
