Components [10/2015 - 03/2018]

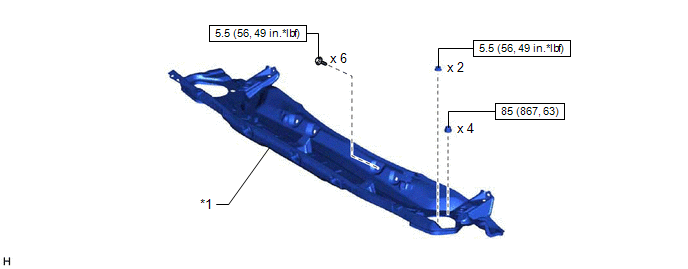

Fig 1: Brake Actuator Replacement Components With Torque Specifications [10/2015 - 03/2018] (1 Of 8)
| Callout | Description | Callout | Description |
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

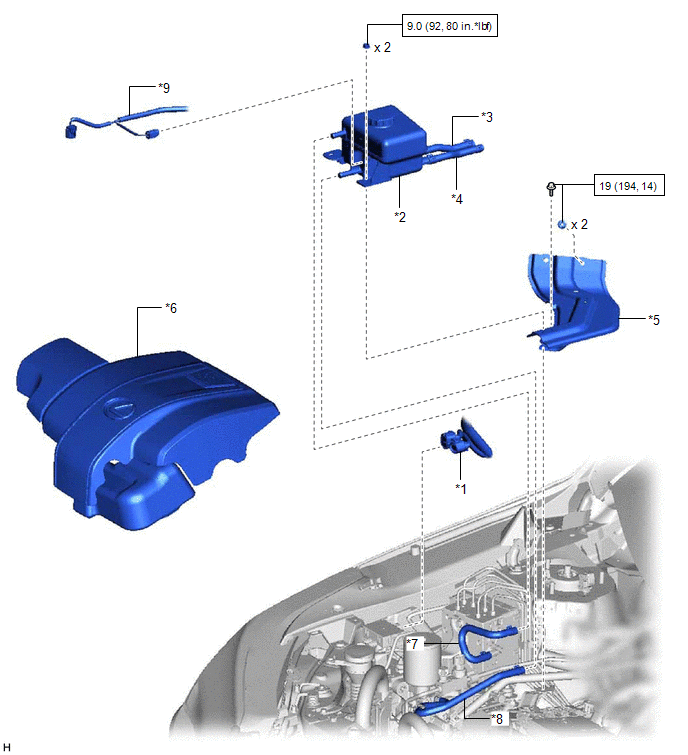

Fig 2: Brake Actuator Replacement Components With Torque Specifications [10/2015 - 03/2018] (2 Of 8)
| Callout | Description | Callout | Description |
| *1 | BRAKE BOOSTER PUMP CONNECTOR | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
| *3 | NO. 1 RESERVOIR HOSE | *4 | NO. 2 RESERVOIR HOSE |
| *5 | RESERVOIR BRACKET | *6 | V-BANK COVER SUB-ASSEMBLY |
| *7 | BRAKE ACTUATOR HOSE | *8 | NO. 2 BRAKE ACTUATOR HOSE |
| *9 | WIRE HARNESS | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

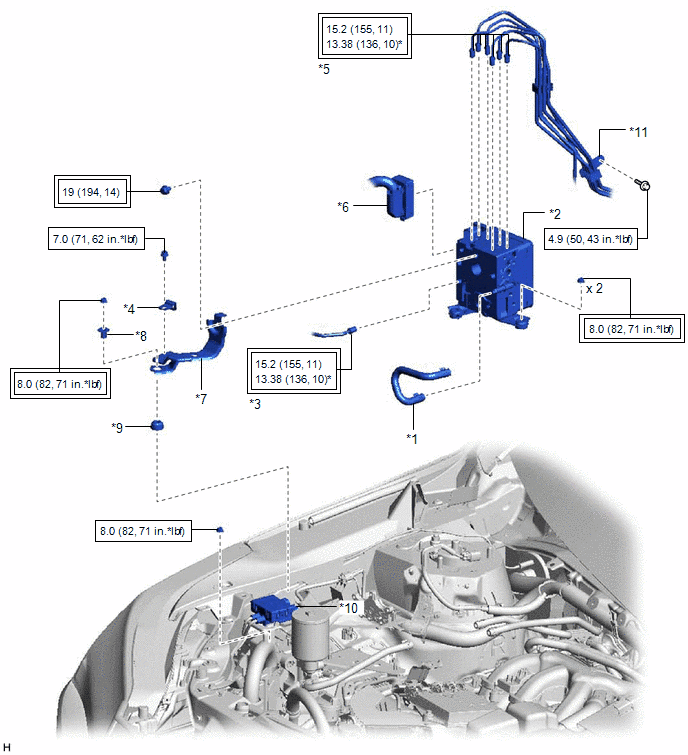

Fig 3: Brake Actuator Replacement Components With Torque Specifications [10/2015 - 03/2018] (3 Of 8)
| Callout | Description | Callout | Description |
| *1 | BRAKE ACTUATOR HOSE | *2 | BRAKE ACTUATOR WITH BRACKET |
| *3 | NO. 1 BRAKE ACTUATOR TUBE | *4 | NO. 1 BRAKE TUBE CLAMP |
| *5 | BRAKE LINE | *6 | CONNECTOR |
| *7 | NO. 1 BRAKE ACTUATOR BRACKET | *8 | BRAKE ACTUATOR BRACKET SPACER |
| *9 | BRAKE ACTUATOR BRACKET CUSHION | *10 | CONNECTOR BOX |
| *11 | BRAKE TUBE CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with a union nut wrench | - | - |

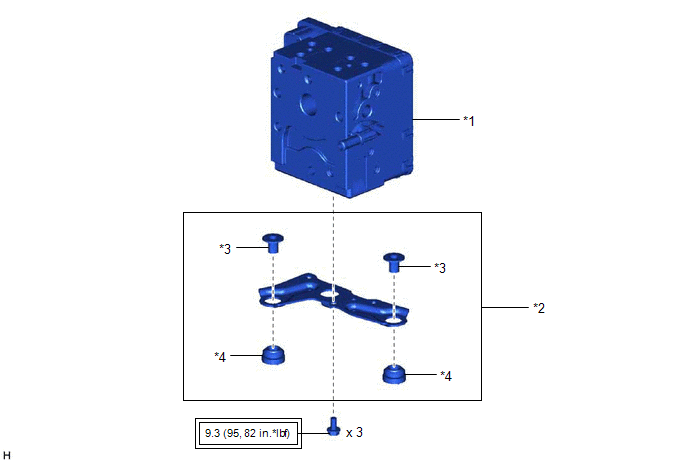

Fig 4: Brake Actuator Replacement Components With Torque Specifications [10/2015 - 03/2018] (4 Of 8)
| Callout | Description | Callout | Description |
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE ACTUATOR BRACKET ASSEMBLY |
| *3 | BRAKE ACTUATOR BRACKET SPACER | *4 | BRAKE ACTUATOR BRACKET CUSHION |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

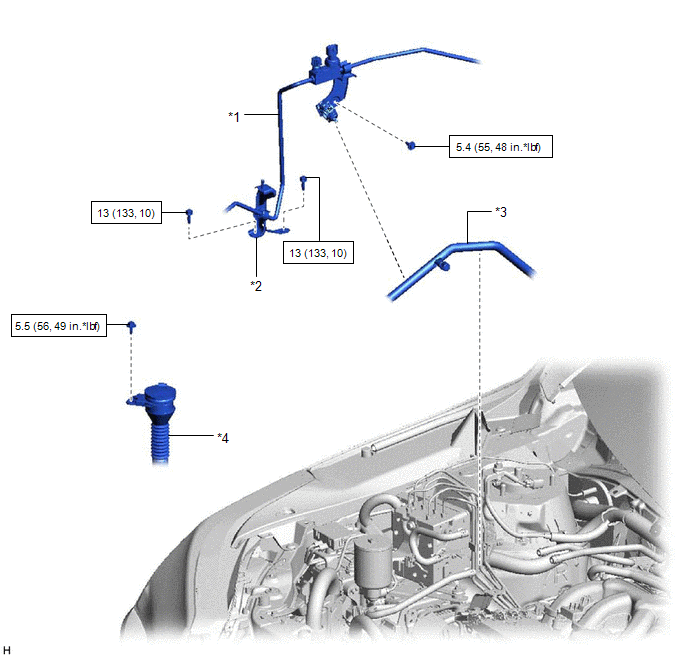

Fig 5: Brake Actuator Replacement Components With Torque Specifications [10/2015 - 03/2018] (5 Of 8)
| Callout | Description | Callout | Description |
| *1 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY | *2 | NO. 3 ECM BRACKET |
| *3 | SUCTION PIPE SUB-ASSEMBLY | *4 | WASHER INLET |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

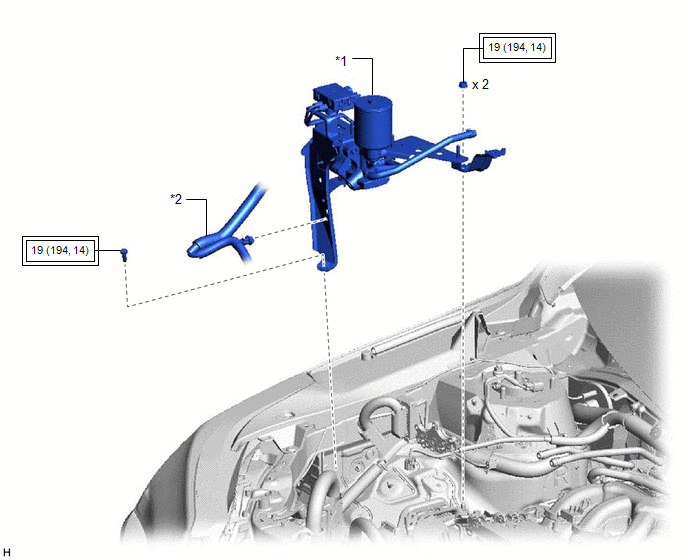

Fig 6: Brake Actuator Replacement Components With Torque Specifications [10/2015 - 03/2018] (6 Of 8)
| Callout | Description | Callout | Description |
| *1 | BRAKE BOOSTER PUMP ASSEMBLY WITH BRACKET | *2 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

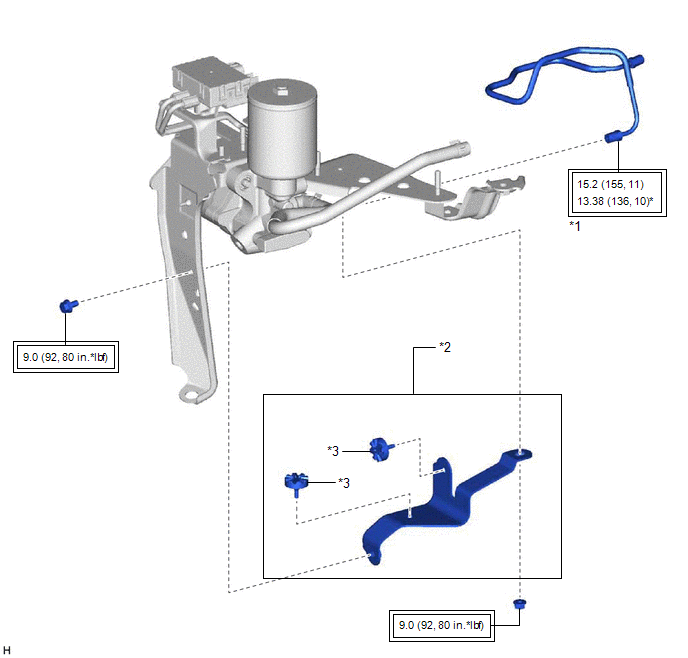

Fig 7: Brake Actuator Replacement Components With Torque Specifications [10/2015 - 03/2018] (7 Of 8)
| Callout | Description | Callout | Description |
| *1 | NO. 1 BRAKE ACTUATOR TUBE | *2 | BRAKE ACTUATOR BRACKET ASSEMBLY |
| *3 | BRAKE ACTUATOR BRACKET CUSHION | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench |

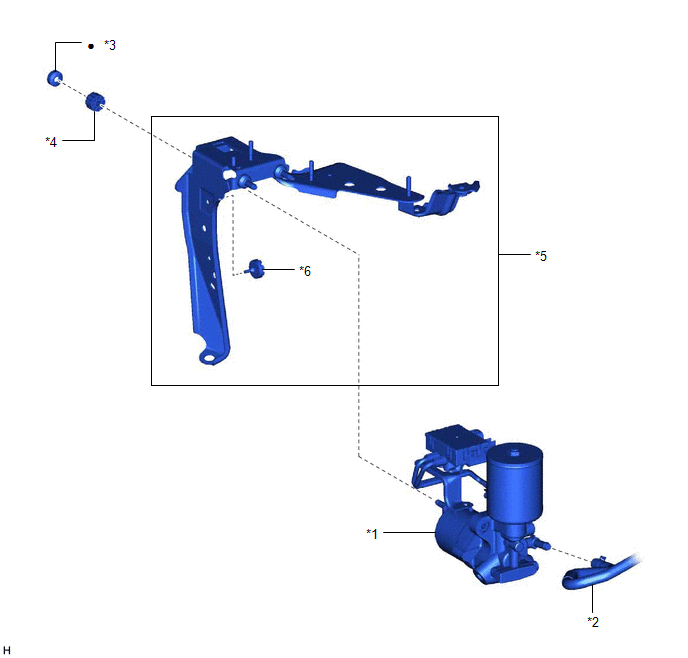

| *1 | BRAKE BOOSTER PUMP ASSEMBLY | *2 | NO. 2 BRAKE ACTUATOR HOSE |
| *3 | BRAKE ACTUATOR BRACKET CLAMP | *4 | BRAKE BOOSTER PUMP BUSHING |
| *5 | BRAKE ACTUATOR BRACKET ASSEMBLY | *6 | BRAKE ACTUATOR BRACKET CUSHION |
| • | Non-reusable part | - | - |
