Inspection [09/2015 - ]: Procedure
- INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

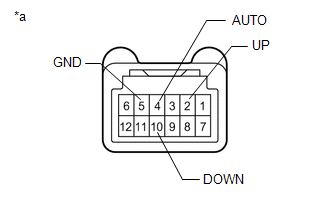

- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
* a Component without harness connected
(Rear Power Window Regulator Switch Assembly)Standard Resistance
Tester Connection Switch Condition Specified Condition 2 (UP) - 5 (GND)
2 (UP) - 4 (AUTO)Auto up operation Below 1 Ω 2 (UP) - 5 (GND) Manual up operation Below 1 Ω 5 (GND) - 10 (DOWN) Manual down operation Below 1 Ω 5 (GND) - 10 (DOWN)
4 (AUTO) - 10 (DOWN)Auto down operation Below 1 Ω - If the result is not as specified, replace the rear power window regulator switch assembly.
- Measure the resistance according to the value(s) in the table below.
