Installation [09/2015 - ]: Procedure
- TEMPORARILY INSTALL TOE CONTROL LINK SUBASSEMBLY LH
- Insert the toe adjust cam from the rear of the vehicle and connect the toe control link. Then temporarily install the No. 2 suspension toe adjust plate with the nut.NOTE:
Align the matchmarks of the No. 2 suspension toe adjust plate and suspension member.
Temporarily install the toe control arm with the new nut to the axle carrier.
- Insert the toe adjust cam from the rear of the vehicle and connect the toe control link. Then temporarily install the No. 2 suspension toe adjust plate with the nut.
- TIGHTEN TOE CONTROL LINK SUBASSEMBLY LH

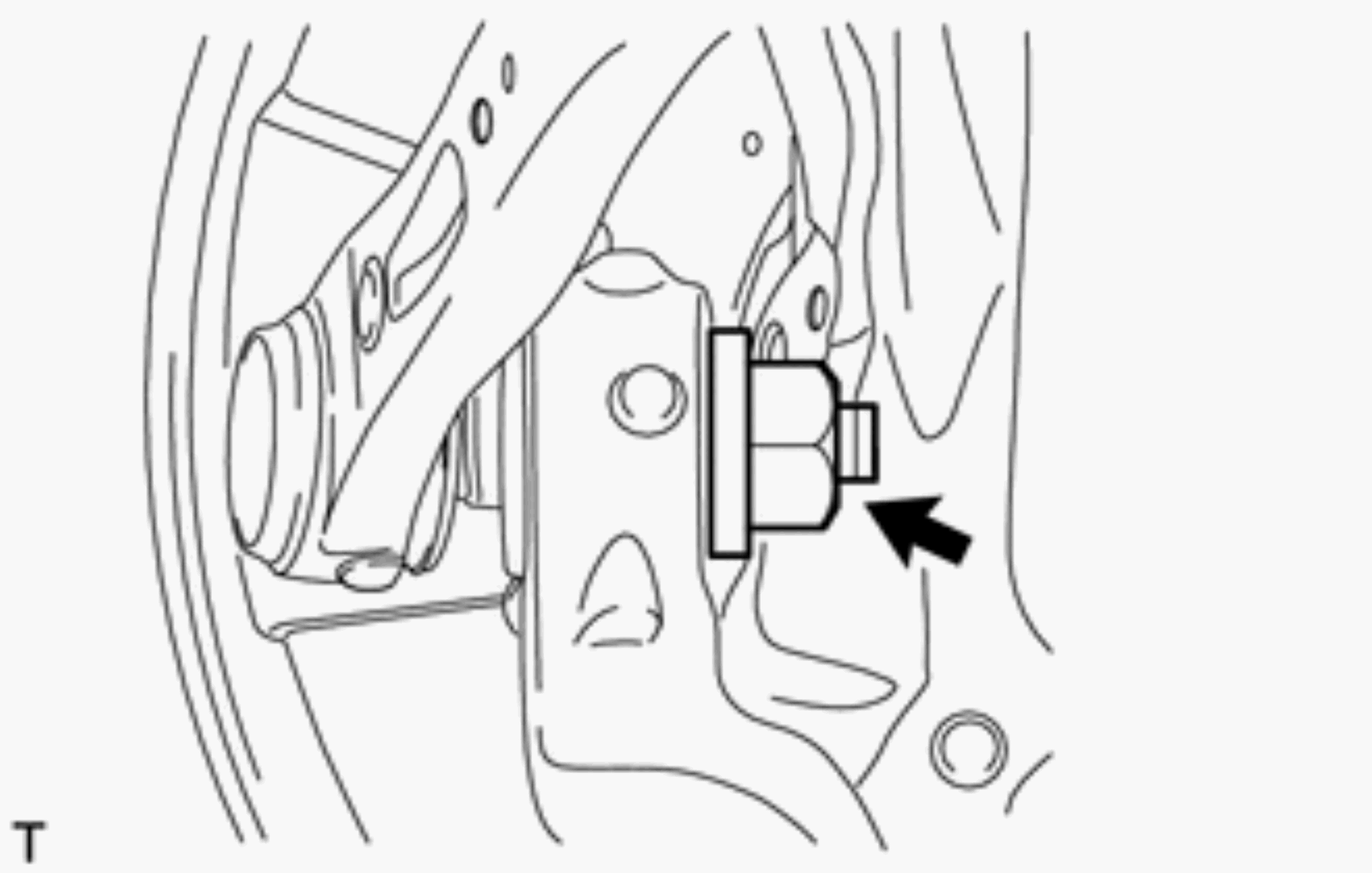

- Tighten the 2 nuts.
Torque: 60 N*m (612 kgf*cm, 44 ft.*lbf)
for suspension member side
Torque: 118 N*m (1203 kgf*cm, 87 ft.*lbf)
for axle carrier side
- Tighten the 2 nuts.
- INSTALL REAR SPEED SENSOR LH
Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 1
- INSTALL LOAD SENSING VALVE SENSOR BRACKET
Refer to PROCEDURE - Step 1
- STABILIZE SUSPENSION
- INSTALL REAR WHEEL
Torque: 140 N*m (1428 kgf*cm, 104 ft.*lbf)
- CHECK SUSPENSION CONTROL SYSTEM (w/ Air Suspension)
- Check the suspension control system (Refer to OPERATION CHECK [09/2015 - ] ).
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
- Inspect and adjust the rear wheel alignment (Refer to ADJUSTMENT [09/2015 - ] ).
- CHECK SPEED SENSOR SIGNAL
- Check the speed sensor signal (Refer to TEST MODE PROCEDURE [09/2015 - ] ).
- ADJUST HEADLIGHT ASSEMBLY
- for HID Headlight:
(Refer to ADJUSTMENT [09/2015 - ] )
- for LED Headlight:
(Refer to ADJUSTMENT [09/2015 - ] )
- for HID Headlight:
