Components [09/2015 - ]: Illustration

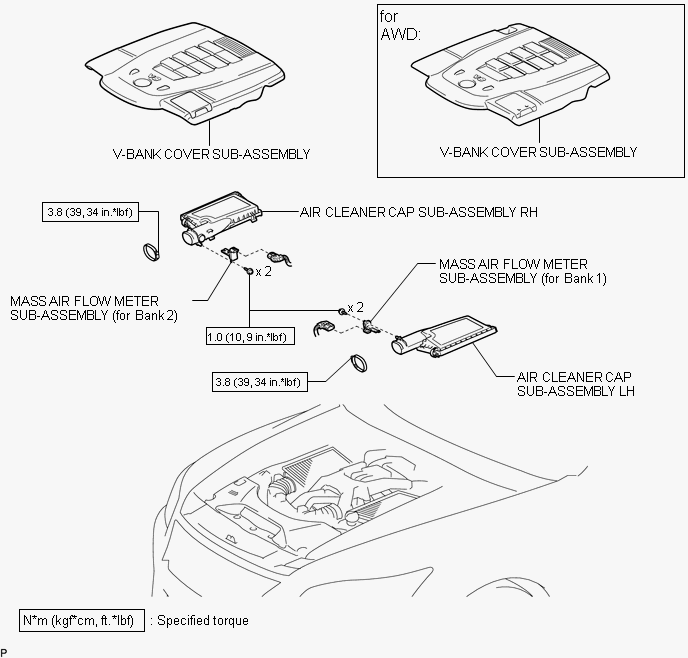

Fig 1: Mass Air Flow Meter Component Location With Torque Specifications
GTY633857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
